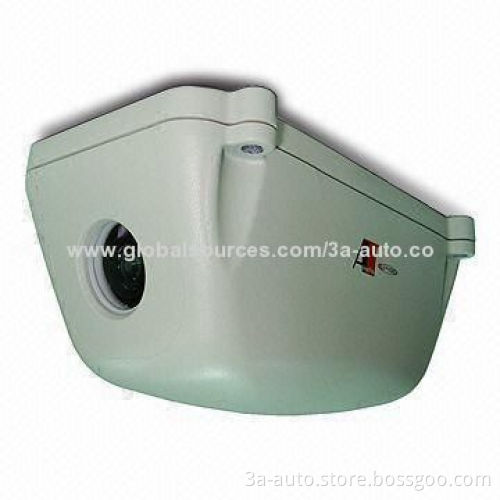

IP68 CCD Color High-resolution Bus Camera, Used for Capturing License Plate

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

IP68 waterproof for outside use

High-quality picture: 1/3-inch CCD high-resolution image

Working low-light: can work less than 0.1 Lux f2.0

Wide voltage range: 10 to 16V

Low-power consumption (95mA at 12V DC) for long lifespan

Built-in auto electronic shutter (AES), auto gain control (AGC), auto white balance (AWB)

Metal lens holder

Sensor: 1/3-inch CCD image high-resolution chip

Effective picture elements: NTSC 768 x 492/PAL 752 x 582 pixels

Synchronization: internal

AGC: on

Lens: 3.6mm (other specifications are available)

Resolution: 520TVL

Video out: 1.0Vp-p, 75 Ohms

White balance: auto

Gamma: 0.45

S/N ratio: >48dB (AGC off)

Current consumption: 95mA at 12V DC

Power supply (input voltage): 12V DC (10 to 16V)

Operating temperature: -10 to 55°C

Storage temperature: -20 to 70°C

Electronics iris: 1/60 to 1/100,000 (NTSC), 1/50 to 1/110,000 seconds (PAL)

Light sensitivity: 0.5 Lux, F1.2/ 0 Lux with IR

Weight: approximate 210g

Dimensions: 72 x 75 x 60mm
