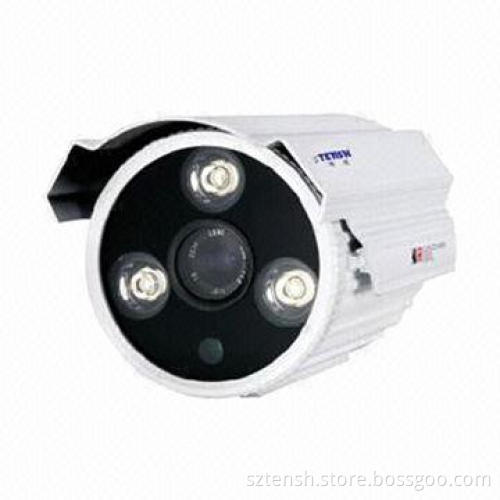

White Light Array Type Dual-core Camera Series, 1/3-inch Color Sony CCD
  • White Light Array Type Dual-core Camera Series, 1/3-inch Color Sony CCD
White Light Array Type Dual-core Camera Series, 1/3-inch Color Sony CCD

White Light Array Type Dual-core Camera Series, 1/3-inch Color Sony CCD

Get Latest Price
Payment Type:
Advance T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Advance T/T or PayPal
Product Description
Product Description
  • Features:
    • Color high sensitivity CCD image sensor, it shows the superior image effects
    • High resolution, BLC, AGC, AWB and mirror function
    • The housing is made by special material, waterproof up to IP66 level
    • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
    • The IR LED lifespan more than five years and night vision has an effective result
    • Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
    • High power lighting protection circuit, to make the CCD board more stability
    • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strengthen
  • Specifications:
    • Model: TS-BS46SS
    • Image sensor: 1/3-inch color Sony CCD
    • CCD total pixel:
      • P: (H x V) 542 x 582
      • N: (H x V) 542 x 582
    • Scanning system: PAL/NTSC
    • Sync system: internal
    • Minimum illumination: 1 lux F1.2/0 lux (IR on)
    • Resolution: 450TVL
    • Lens: F1.4/16mm
    • IR distance: 0 - 100m
    • IR LED: 3pcs
    • WBC: auto
    • AGC: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto iris: electronic shutter
    • Mirror function: on/off optionally
    • BLC: on/off optionally
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature: -20 - 50°C
    • Working humidity: 85% RH
    • Power supply: DC 12V
    • Power consumption: ≤1500mA
    • Measurement: 185 x 115 x 105mm
  • Color high sensitivity CCD image sensor, it shows the superior image effects
  • High resolution, BLC, AGC, AWB and mirror function
  • The housing is made by special material, waterproof up to IP66 level
  • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
  • The IR LED lifespan more than five years and night vision has an effective result
  • Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
  • High power lighting protection circuit, to make the CCD board more stability
  • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strengthen
  • Model: TS-BS46SS
  • Image sensor: 1/3-inch color Sony CCD
  • CCD total pixel:
    • P: (H x V) 542 x 582
    • N: (H x V) 542 x 582
  • Scanning system: PAL/NTSC
  • Sync system: internal
  • Minimum illumination: 1 lux F1.2/0 lux (IR on)
  • Resolution: 450TVL
  • Lens: F1.4/16mm
  • IR distance: 0 - 100m
  • IR LED: 3pcs
  • WBC: auto
  • AGC: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto iris: electronic shutter
  • Mirror function: on/off optionally
  • BLC: on/off optionally
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature: -20 - 50°C
  • Working humidity: 85% RH
  • Power supply: DC 12V
  • Power consumption: ≤1500mA
  • Measurement: 185 x 115 x 105mm
  • P: (H x V) 542 x 582
  • N: (H x V) 542 x 582
