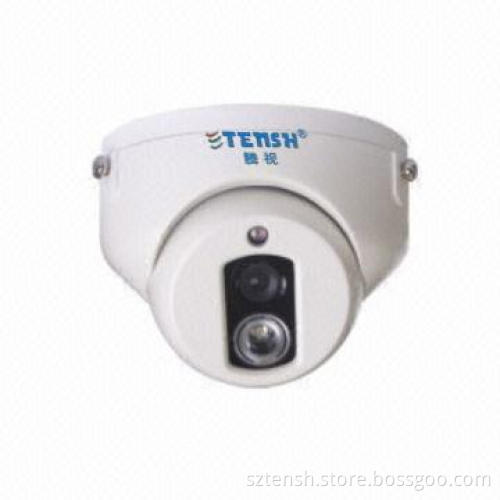

600TVL Dome High-definition IR Camera Series with 0 to 40m IR Distance

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Color high-sensitivity CCD image sensor, it shows the superior image effects
High-resolution, BLC, AGC, AWB and mirror functions
The housing is made of special material
Waterproof level: IP65
The fourth generation of IR array illuminance, which can improve the photoelectric conversion efficiency
IR LED lifespan: more than five years and night vision has an effective result
Use accurate constant current source technology
The LED board is designed separately from the control circuit board, to make it more stable
High-power lighting protection circuit, to make the CCD board more stable
The CCD board is designed by two-PCB boards, every PCB board has four-layer circuit, to make it strong

Specifications:

Image sensor: 1/3-inch color Sony CCD
CCD total pixels:
- PAL (H x V): 648 x 488 pixels
- NTSC (H x V): 648 x 488 pixels
Scanning systems: PAL/NTSC
Sync system: internal
Minimum illumination: 1 Lux F1.2/0 Lux (IR on)
Resolution: 600TVL
Lens: MTV 3.6 to 16mm optionally
IR distance range: 0 to 40m
IR LED: 1 piece
WBC: auto
AG: AGC
S/N ratio: ≥48dB
Exposure time: auto
Auto-iris: electronic shutter
Mirror function: on/off optionally
BLC: on/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20 to 50℃
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurement: 100 x 120mm

Color high-sensitivity CCD image sensor, it shows the superior image effects

High-resolution, BLC, AGC, AWB and mirror functions

The housing is made of special material

Waterproof level: IP65

The fourth generation of IR array illuminance, which can improve the photoelectric conversion efficiency

IR LED lifespan: more than five years and night vision has an effective result

Use accurate constant current source technology

The LED board is designed separately from the control circuit board, to make it more stable

High-power lighting protection circuit, to make the CCD board more stable

The CCD board is designed by two-PCB boards, every PCB board has four-layer circuit, to make it strong

Image sensor: 1/3-inch color Sony CCD

CCD total pixels:

PAL (H x V): 648 x 488 pixels
NTSC (H x V): 648 x 488 pixels

Scanning systems: PAL/NTSC

Sync system: internal

Minimum illumination: 1 Lux F1.2/0 Lux (IR on)

Resolution: 600TVL

Lens: MTV 3.6 to 16mm optionally

IR distance range: 0 to 40m

IR LED: 1 piece

WBC: auto

AG: AGC

S/N ratio: ≥48dB

Exposure time: auto

Auto-iris: electronic shutter

Mirror function: on/off optionally

BLC: on/off optionally

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperatures: -20 to 50℃

Working humidity: 85% RH

Power supply: 12V DC

Power consumption: ≤450mA

Measurement: 100 x 120mm

PAL (H x V): 648 x 488 pixels

NTSC (H x V): 648 x 488 pixels
