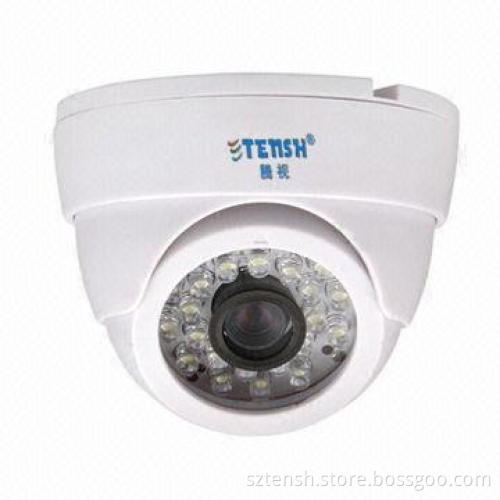

420TVL Commonly Used IR Dome Camera Series
  • 420TVL Commonly Used IR Dome Camera Series
420TVL Commonly Used IR Dome Camera Series

420TVL Commonly Used IR Dome Camera Series

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Unique LED strengthened focusing light for 24-hour monitoring
    • LED lifespan 60,000 hours
    • The base plate adopts high-quality special materials and reaches IP65 safety prevention voltage
    • Uses the newest IR technical, night vision will be an effect in long distance
    • Image sensor: 1/3 Sony CCD
    • Effective pixels:
      • PAL (H x V): 500 x 582
      • NTSC (H x V): 752 x 582
    • Scanning area: 4.9 x 3.7mm
    • Signal system: PAL/NTSC
    • Horizontal resolution: 420TVL
    • Lens: MTV3.6 to 16mm
    • AGC: on/off optionally
    • BLC: on/off optionally
    • S/N ratio: ≥48dB
    • Minimum illumination: 0 Lux
    • IR LED: ∮5/30 pieces
    • Electronic shutter speeds:
      • PAL: 1/50 to 1/100,000 seconds
      • NTSC: 1/60 to 1/100,000 seconds
    • Auto iris lens: video/DC optional
    • WBC: auto
    • Synchronous: internal
    • Video output: 1.0Vp-p/75Ω
    • Power consumption: 400mA
    • Working temperature range: -10 to 50℃
    • Power supply: 12V DC
    • IR distance range: 0 to 30m
    • Measurement: 120 x 95mm
  • Unique LED strengthened focusing light for 24-hour monitoring
  • LED lifespan 60,000 hours
  • The base plate adopts high-quality special materials and reaches IP65 safety prevention voltage
  • Uses the newest IR technical, night vision will be an effect in long distance
  • Image sensor: 1/3 Sony CCD
  • Effective pixels:
    • PAL (H x V): 500 x 582
    • NTSC (H x V): 752 x 582
  • Scanning area: 4.9 x 3.7mm
  • Signal system: PAL/NTSC
  • Horizontal resolution: 420TVL
  • Lens: MTV3.6 to 16mm
  • AGC: on/off optionally
  • BLC: on/off optionally
  • S/N ratio: ≥48dB
  • Minimum illumination: 0 Lux
  • IR LED: ∮5/30 pieces
  • Electronic shutter speeds:
    • PAL: 1/50 to 1/100,000 seconds
    • NTSC: 1/60 to 1/100,000 seconds
  • Auto iris lens: video/DC optional
  • WBC: auto
  • Synchronous: internal
  • Video output: 1.0Vp-p/75Ω
  • Power consumption: 400mA
  • Working temperature range: -10 to 50℃
  • Power supply: 12V DC
  • IR distance range: 0 to 30m
  • Measurement: 120 x 95mm
  • PAL (H x V): 500 x 582
  • NTSC (H x V): 752 x 582
  • PAL: 1/50 to 1/100,000 seconds
  • NTSC: 1/60 to 1/100,000 seconds
