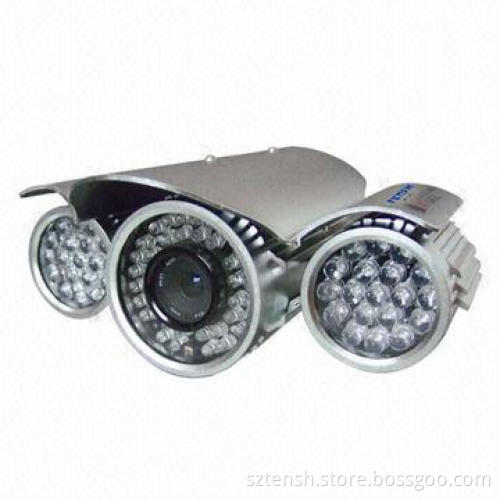

Long-range IR Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Unique LED strengthened focusing light for 24-hour monitoring

Effective life of LED lights is up to 60,000 hours

Base plate adopts high-quality special materials and reaches IP65

Safety prevention voltage

Uses the newest IR technology, night vision has an effective result in long distance

Image sensor: 1/3-inch color Sony CCD

Effective pixels:

Scanning area: 4.9 x 3.7mm

Signal systems: PAL/NTSC

Horizontal resolution: 420TVL

Lens: F1.4/16mm

AGC: on/off, optional

BLC: on/off, optional

S/N ratio: ≥48dB

Minimum illumination: 0 lux

IR LED: ∮5/52pcs

Electronic shutter speed:

Auto iris lens: video/DC optional

WBC: automatic

Synchronous: internal

Video output: 1.0Vp-p/75Ω

Power consumption: 400mA

Working temperatures: -10 to 50°C

Power supply: 12V DC

IR distance range: 0 to 80m

Dimensions: 168 x 210 x 85mm

PAL: 500 (H) x 582p (V)

NTSE: 768 (H) x 494p (V)

PAL: 1/50 to 1/100,000sec

NTSC: 1/60 to 1/100,000sec
