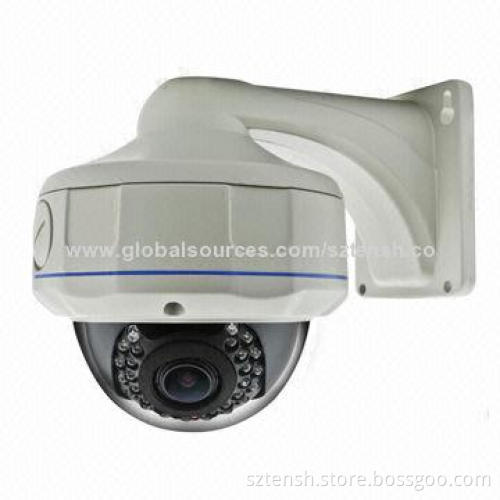

Megapixel CVI Camera with 1,280 x 960 Pixels Resolution

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Features:

1/3-inch CMOS, DH9801 sensor, 1,280X960 pixels
High-quality image
With HD CVI digital port, support coaxial video cable transmitting distance 500 meters
Real-time transmission, without delay
Supports for high-definition video signal coaxial transmission
ICR switching supports to achieve the day and night monitoring
Supports 3D noise reduction and extra low-illumination
Built-in 6mm lens
Waterproof rate: IP66
Two camera colors: optional

Specifications:

Model number: S-CVI20
IR LED 31 pieces IR LEDs, 25m IR distance
Image sensor: 1/3-inch CMOS pixel PI X-khan (PC3100K)
Main processor: ISP processor DH9801
Pixels (H*V): 1,280*960
Day and night auto (ICR) / color / B/W
Linux 0.01 Lux/F1.2 (color), 0.001 Lux/F1.2 (B/W)
WB auto
Video frame rate: 1,280*720P at 25fps, 720 x 576P at 50fps
Video output: 1 channel BNC HDCVI high-definition video output/CVBS standard definition video output (can switch)
Image adjustment can adjust image lightness, sharpness, contrast and more
Gamma adjustment supports 16 pieces gamma curve
3D DNR supported
Power supply: 12V DC ±10%
Power consumption: 7.7W (maximum)
Working environment: -30 to +60°C/less than 95% RH (no condensation)
Ingress protection: IP66
Transmission distance over 500m via 75-3-coaxial cable
Weight: 2kg
