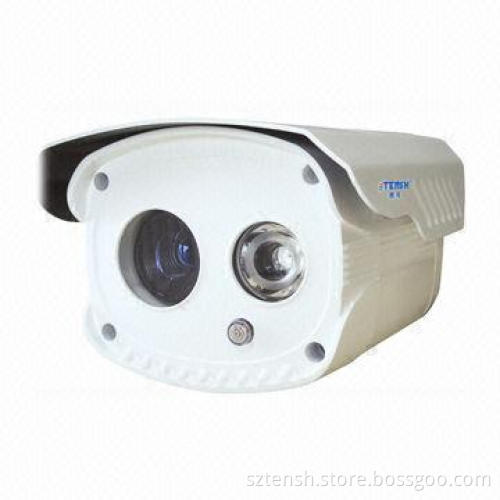

700TVL Array III Daul-core Camera
  • 700TVL Array III Daul-core Camera
700TVL Array III Daul-core Camera

700TVL Array III Daul-core Camera

Payment Type:
Advance T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Advance T/T or PayPal
Product Description
Product Description
  • Features:
    • Color high sensitivity DIS image sensor, it shows the superior image effects
    • High resolution, BLC, AGC, AWB, mirror functions
    • The housing is made by special material, waterproof up to IP 66 level
    • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency. The IR LED lifetime more than five years and night vision has an effective result
    • Use accurate constant current source technology, the LED board is designed to separate from the control circuit board,to make it more stability
    • High power lighting protection circuit, to make the CCD board more stability
    • The CCD board is designed by two PCB boards,every PCB board has four layers circuit, to make it work strengthen
  • Image sensor: 1/3 color Sony CCD
  • CCD total pixel:
    • P: 976(H) x 582(V)
    • N: 976(H) x 494(v)
  • Scanning systems: PAL/NTSC
  • Sync system: Internal
  • Minimum illumination: 1lux F1.2/0lux (IR On)
  • Resolutions: 700TVL
  • Lens: F1.2/16mm, F1.2/12mm, F1.2/8mm
  • IR distance range: 0—120M, 0—80M and 0—40M
  • IR LED: 4pcs, 2pcs and 1pc
  • WBC: Auto
  • AGC: AGC
  • S/N ratio: ≥48db
  • Exposure time: Auto
  • Auto iris: Electronic shutter
  • Mirror function: On/Off optionally
  • BLC: On/Off optionally
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperatures: -20 - 50℃
  • Working humidity: 85% RH
  • Power supply: DC 12V
  • Power consumption: ≤450mA
  • Measurements: 214 x 32 x 96mm, 175 x 20 x 80mm, 148 x 100 x 74mm
  • Color high sensitivity DIS image sensor, it shows the superior image effects
  • High resolution, BLC, AGC, AWB, mirror functions
  • The housing is made by special material, waterproof up to IP 66 level
  • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency. The IR LED lifetime more than five years and night vision has an effective result
  • Use accurate constant current source technology, the LED board is designed to separate from the control circuit board,to make it more stability
  • High power lighting protection circuit, to make the CCD board more stability
  • The CCD board is designed by two PCB boards,every PCB board has four layers circuit, to make it work strengthen
  • P: 976(H) x 582(V)
  • N: 976(H) x 494(v)
