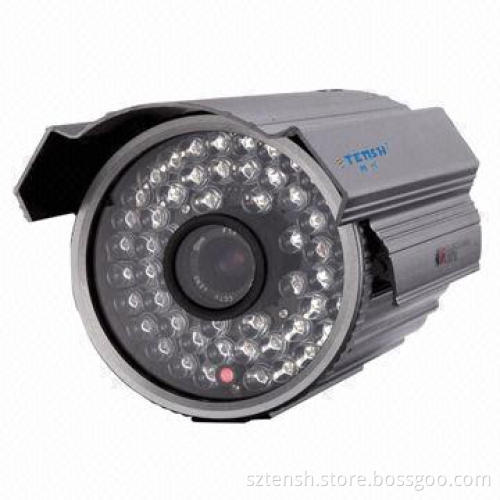

IR Lamp Dual Core Series Camera, 1/3 Color Sony CCD
  • IR Lamp Dual Core Series Camera, 1/3 Color Sony CCD
IR Lamp Dual Core Series Camera, 1/3 Color Sony CCD

IR Lamp Dual Core Series Camera, 1/3 Color Sony CCD

Get Latest Price
Payment Type:
T/T in Advance or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or PayPal
Product Description
Product Description
  • Features:
    • Color high sensitivity CCD image sensor, shows the superior image effects
    • High resolution, BLC, AGC, AWB, mirror function
    • The housing is made by special material, waterproof up to IP66 level
    • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
    • The IR LED lifetime more than five years and night vision has an effective result
    • Use accurate constant current source technology, LED board is designed to separate from the control circuit board,to make it more stability
    • High power lighting protection circuit, to make the CCD board more stability
    • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strengthen
  • Specifications:
    • Image sensor: 1/3 Color Sony CCD
    • CCD total pixel:
      • P: 542 (H) x 582 (V)
      • N: 542 (H) x 582 (V)
    • Scanning system: PAL/NTSC
    • Sync system: internal
    • Minimum illumination: 1 lux F1.2/0 lux (IR on)
    • Resolution: 450TVL
    • Lens: F1.4/4-16mm
    • IR distance: 60m
    • IR LED: Ø8/54pcs
    • WBC: auto
    • AGC: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto iris: electronic shutter
    • Mirror function: on/off optionally
    • BLC: on/off optionally
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature: -20 to 50°C
    • Working humidity: 85% RH
    • Power supply: DC 12V
    • Power consumption: ≤450mA
    • Measurement: 185 x 112 x 105mm
  • Color high sensitivity CCD image sensor, shows the superior image effects
  • High resolution, BLC, AGC, AWB, mirror function
  • The housing is made by special material, waterproof up to IP66 level
  • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
  • The IR LED lifetime more than five years and night vision has an effective result
  • Use accurate constant current source technology, LED board is designed to separate from the control circuit board,to make it more stability
  • High power lighting protection circuit, to make the CCD board more stability
  • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strengthen
  • Image sensor: 1/3 Color Sony CCD
  • CCD total pixel:
    • P: 542 (H) x 582 (V)
    • N: 542 (H) x 582 (V)
  • Scanning system: PAL/NTSC
  • Sync system: internal
  • Minimum illumination: 1 lux F1.2/0 lux (IR on)
  • Resolution: 450TVL
  • Lens: F1.4/4-16mm
  • IR distance: 60m
  • IR LED: Ø8/54pcs
  • WBC: auto
  • AGC: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto iris: electronic shutter
  • Mirror function: on/off optionally
  • BLC: on/off optionally
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature: -20 to 50°C
  • Working humidity: 85% RH
  • Power supply: DC 12V
  • Power consumption: ≤450mA
  • Measurement: 185 x 112 x 105mm
  • P: 542 (H) x 582 (V)
  • N: 542 (H) x 582 (V)
