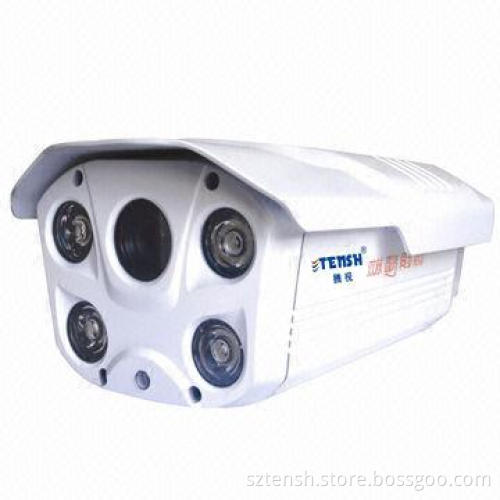

Intelligent Through Fog Camera, 1/3-inch Sony CCD

Get Latest Price

Payment Type:: Advance T/T or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Feature:

Original Sony 1/30inch super HAD CCD II
4pcs high power IR-LED, with accurate constant current source technology
Night vision distance: 80m
Special housing design to make 4PCS IR-LED high power to radiating strengthen
High sensor lightning protection circuit design
Support lens correction, WDR, varifocal correction, dynamic trapezoidal correction

Intelligent characteristics:

Clear the fog: it can show a very clear picture in the raining day, fog, sandstorm weather
WDR: auto balance the scene, auto wide dynamic compensation, it can prompt some part of fuzzy pixels when in the backlight or dark to make the picture clear
Noise reduction: low illumination detection, 3D auto noise reduction function to save 27% storage space

Specifications:

Model: TS-TS160H-P4
Image sensor: 1/3 color Sony CCD
CCD total pixel: P 976 (H) x 582 (V), N 976 (H) x 494 (V)
Scanning system: PAL/NTSC
Sync system: internal
Minimum illumination: 0.001 lux, F1.2
Resolution: 700TVL
Lens: F1.2/8-25mm
IR distance: 0-120m
IR LED: 4pcs
WBC: auto
AGC
S/N ratio: ≥48db
Exposure time: auto
Auto iris: electronic shutter
Mirror function: on/off, optional
BLC: on/off, optional
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperature: -20-50°C
Working humidity: 85% RH
Power supply: 12V DC ± 1V/2,000mA
Power consumption: ≤800mA
Dimensions: 270 x 130 x 90mm

Original Sony 1/30inch super HAD CCD II

4pcs high power IR-LED, with accurate constant current source technology

Night vision distance: 80m

Special housing design to make 4PCS IR-LED high power to radiating strengthen

High sensor lightning protection circuit design

Support lens correction, WDR, varifocal correction, dynamic trapezoidal correction

Clear the fog: it can show a very clear picture in the raining day, fog, sandstorm weather

WDR: auto balance the scene, auto wide dynamic compensation, it can prompt some part of fuzzy pixels when in the backlight or dark to make the picture clear

Noise reduction: low illumination detection, 3D auto noise reduction function to save 27% storage space

Model: TS-TS160H-P4

Image sensor: 1/3 color Sony CCD

CCD total pixel: P 976 (H) x 582 (V), N 976 (H) x 494 (V)

Scanning system: PAL/NTSC

Sync system: internal

Minimum illumination: 0.001 lux, F1.2

Resolution: 700TVL

Lens: F1.2/8-25mm

IR distance: 0-120m

IR LED: 4pcs

WBC: auto
