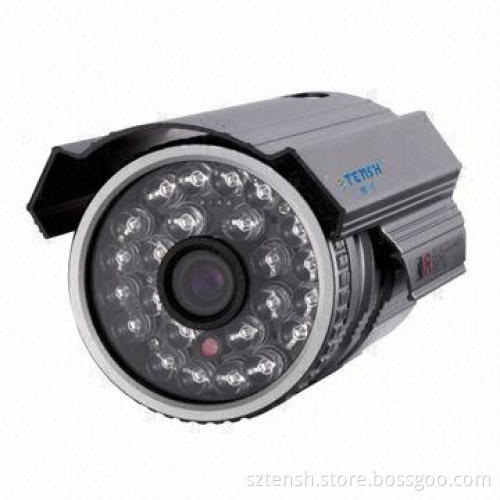

450TVL IR Lamp Dual-core Camera Series with 1/3-inch Color Sony CCD Image Sensor
  • 450TVL IR Lamp Dual-core Camera Series with 1/3-inch Color Sony CCD Image Sensor
450TVL IR Lamp Dual-core Camera Series with 1/3-inch Color Sony CCD Image Sensor

450TVL IR Lamp Dual-core Camera Series with 1/3-inch Color Sony CCD Image Sensor

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Color high sensitivity CCD image sensor, it shows the superior image effects
    • High resolution, BLC, AGC, AWB and mirror functions
    • The housing is made of special material
    • Waterproof level: IP65
    • The fourth generation of IR array illuminance, which can improve the photoelectric conversion efficiency
    • IR LED lifespan: more than five years and night vision has an effective result
    • Uses accurate constant current source technology, the LED board is designed separately from the control circuit board, to make it more stable
    • High power lighting protection circuit, to make the CCD board more stable
    • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it strong
  • Specifications:
    • Image sensor: 1/3-inch color Sony CCD
    • CCD total pixels: P: 542 (H) x 582 (V) N: 542 (H) x 582 (V)
    • Scanning systems: PAL/NTSC
    • Sync system: internal
    • Minimum illumination: 1 lux F1.2/0 lux (IR on)
    • Resolution: 450TVL
    • Lens: 1 lix F1.4/0 lux, 4 to 16mm (optional)
    • IR distance range: 0 to 40m
    • IR LED: Ø8/30pcs
    • WBC: 1/50-1/100000 automatic
    • AG: AGC
    • S/N ratio: ≥48dB
    • Exposure time: automatic
    • Auto iris: electronic shutter
    • Mirror function: on/off (optional)
    • BLC: on/off (optional)
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature range: -20 to 50°C
    • Working humidity: 85% RH
    • Power supply: DC 12V
    • Power consumption: ≤450mA
    • Dimensions: 170 x 102 x 95mm
  • Color high sensitivity CCD image sensor, it shows the superior image effects
  • High resolution, BLC, AGC, AWB and mirror functions
  • The housing is made of special material
  • Waterproof level: IP65
  • The fourth generation of IR array illuminance, which can improve the photoelectric conversion efficiency
  • IR LED lifespan: more than five years and night vision has an effective result
  • Uses accurate constant current source technology, the LED board is designed separately from the control circuit board, to make it more stable
  • High power lighting protection circuit, to make the CCD board more stable
  • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it strong
  • Image sensor: 1/3-inch color Sony CCD
  • CCD total pixels: P: 542 (H) x 582 (V) N: 542 (H) x 582 (V)
  • Scanning systems: PAL/NTSC
  • Sync system: internal
  • Minimum illumination: 1 lux F1.2/0 lux (IR on)
  • Resolution: 450TVL
  • Lens: 1 lix F1.4/0 lux, 4 to 16mm (optional)
  • IR distance range: 0 to 40m
  • IR LED: Ø8/30pcs
  • WBC: 1/50-1/100000 automatic
  • AG: AGC
  • S/N ratio: ≥48dB
  • Exposure time: automatic
  • Auto iris: electronic shutter
  • Mirror function: on/off (optional)
  • BLC: on/off (optional)
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature range: -20 to 50°C
  • Working humidity: 85% RH
  • Power supply: DC 12V
  • Power consumption: ≤450mA
  • Dimensions: 170 x 102 x 95mm
