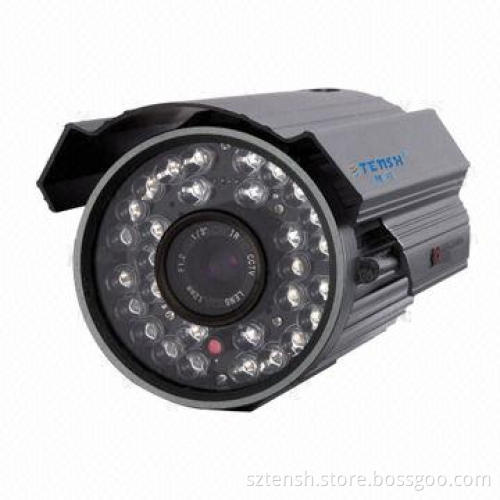

450TVL IR Lamp Dual-core Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Color high sensitivity CCD image sensor which shows superior image effects

The housing is made of a special material, waterproof up to IP65

The fourth generation of IR array illumination, which can improve the photoelectric conversion efficiency

The IR LED lifespan of more than five years and night vision has an effective result

Uses accurate constant current source technology, the LED board is designed to separate from the control circuit board to make it more stable

High power lighting protection circuit, to make the CCD board more stable

The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it strong

Image sensor: 1/3-inch color Sony CCD

CCD total pixel: P: 542(H) x 582(V) N: 542(H) x 582(V)

Scanning systems: PAL/NTSC

Sync system: internal

Minimum illumination: 1 lux F1.2/0 lux (IR on)

Resolution: 450TVL

Lens: 1 lux F1.4/0 lux, 4 to 16mm (optional)

IR distance: 0 to 40m

IR LED: Ø8/30pcs

WBC: 1/50-1/100000 automatic

AG: AGC

S/N ratio: ≥48dB

Exposure time: automatic

Auto iris: electronic shutter

Mirror function: on/off optional

BLC: on/off optional

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperature range: -20 to 50°C

Working humidity: 85% RH

Power supply: DC 12V

Power consumption: ≤450mA

Dimensions: 170 x 102 x 95mm
