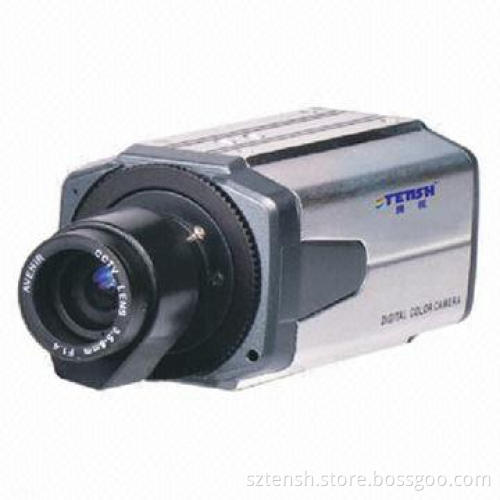

WDR Camera, Measures 112 x 65 x 60mm
  • WDR Camera, Measures 112 x 65 x 60mm
WDR Camera, Measures 112 x 65 x 60mm

WDR Camera, Measures 112 x 65 x 60mm

Get Latest Price
Payment Type:
Advance T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Advance T/T or PayPal
Product Description
Product Description
  • Image sensor: 1/3-inch Sony CCD
  • Effective pixels:
    • PAL: 752 (H) x 582 (V)
    • NTSE: 768 (H) x 494 (V)
  • Scanning area: 4.9 x 3.7mm
  • Signal system: PAL/NTSC
  • Horizontal resolution: 540TVL
  • Lens: C/cs
  • AGC: on/off (optional)
  • BLC: on/off (optional)
  • S/N ratio: ≥48dB (AGC off)
  • Minimum illumination: 0.05 lux F1.2
  • ECLP:
    • Electronic shutter:
      • PAL: 1/50 to 1/100,000sec
      • NTSC: 1/60 to 1/100,000sec
    • Auto-iris lens: video/DC option
    • WBC: auto
    • Synchronous: internal
    • Video output: 1.0Vp-p/75Ω
    • Power consumption: ≤2.8W
    • Working temperature: -10 to 50°C
    • Power supply: DC/12V
    • Weight: 400g
    • Measurement: 112 x 65 x 60mm
  • PAL: 752 (H) x 582 (V)
  • NTSE: 768 (H) x 494 (V)
  • Electronic shutter:
    • PAL: 1/50 to 1/100,000sec
    • NTSC: 1/60 to 1/100,000sec
  • Auto-iris lens: video/DC option
  • WBC: auto
  • Synchronous: internal
  • Video output: 1.0Vp-p/75Ω
  • Power consumption: ≤2.8W
  • Working temperature: -10 to 50°C
  • Power supply: DC/12V
  • Weight: 400g
  • Measurement: 112 x 65 x 60mm
  • PAL: 1/50 to 1/100,000sec
  • NTSC: 1/60 to 1/100,000sec
