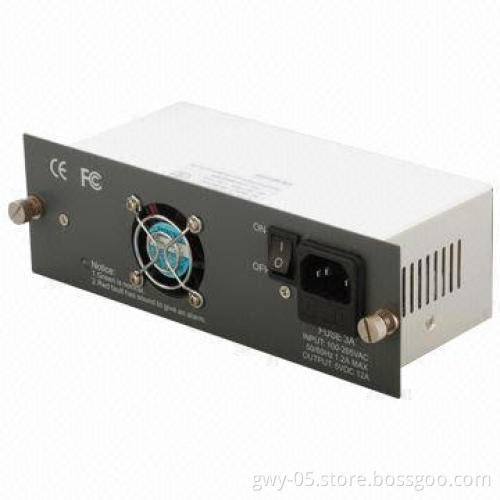

Switch Power Supply with Output 5V, 75W, Measures 166 x 80 x 57mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features：

Universal input voltages: 85-264V AC

105℃ long life capacitance

Protection: short-circuit, overload, over-voltage

High-efficiency, long life, high-reliability

Apply to work under harsh conditions

Low-standby power consumption to meet the energy requirements

100% full load burn-in test

Input voltages: 85-264VAC

Frequency range: 47-63Hz

Output voltages regulation range: ±5%

Operating temperatures/cooling method: -20-70℃

Overload protection: 105-150%

Over-voltages protection: 115-150%

Output start/ hold times: ton ≤1S, Td≥ 20mS at 230V AC

Vibration: 10-500Hz, 2G 10min/1 cycle, periled for 60m

Each along X, Y, Z-axes

Insulating strength: IP-OP 3KV AC, IP-FG 1.5KV AC, OP-FG 0.5KV AC, 1m

Safety standard: IEC/EN/UL/CSA 60,950 Gb4,943

EMC standard: EN61,000-4-2, 3, 4, 5, 6, 8, 11/ EN61000-3-2, 3/EN55022 class B

Dimensions: 166 x 80 x 57mm

The features and parameters above apply to the model as follow:
