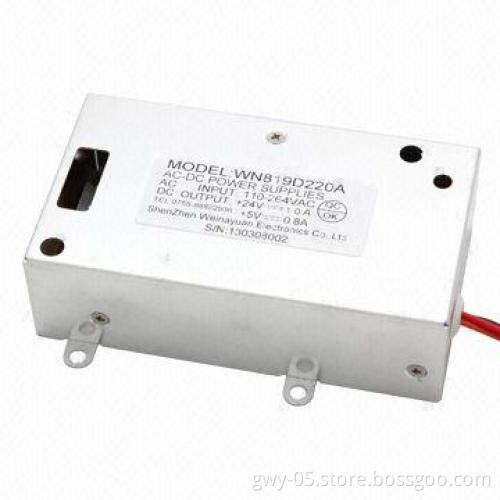

Switch Power Supply with Output 31W, Measures 110 x 78 x 33mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

The features and parameters above apply to the model as follow:

Universal input voltages: 85-264V AC

105℃ long life capacitance

Protections: short-circuit, overload, over-voltage

High-efficiency, long life, high-reliability

Apply to work under harsh conditions

Low-standby power consumption to meet the energy requirements

100% full load burn-in test

Frequency range: 47-63Hz

Output voltage regulation range: ±5%

Operating temperature/cooling method: -20-70℃

Overload protection: 105-150%

Over-voltage protection: 115-150%

Output start/hold time: ton ≤1S, Td≥ 20mS at 230V AC

Vibration: 10-500Hz, 2G 10min/1 cycle, periled for 60m

Each along X, Y, Z-axes

Insulating strength: IP-OP 3KV AC, IP-FG 1.5KV AC, OP-FG 0.5KV AC, 1m

Safety standards: IEC/EN/UL/CSA 60950 Gb4943

EMC standard: EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61000-3-2, 3, EN55022 class B

Dimensions: 110x78x33mm
