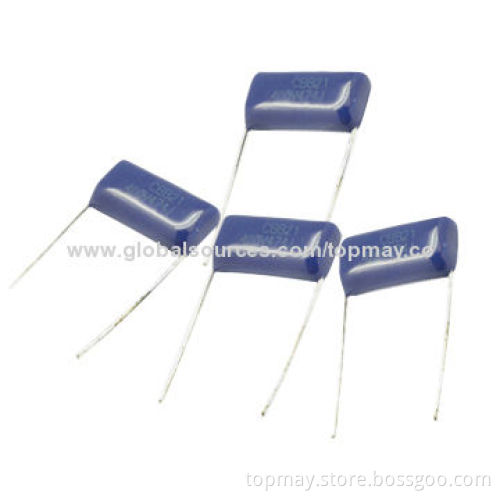

Polypropylene Film Capacitors with 0.001 to 1.0μF Capacitor Range, Used for Pulse Circuit

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Low-loss at high-frequency

Suitable for high-current

Excellent frequency and temperature characteristics

Widely used in high-frequency, DC, AC and pulse circuit

Aluminum foil as electrode with copper-clad steel leads andepoxy resin coating

Reference standard: GB10188-88 (1CE60384-13)

Climatic categories: 40, 85 and 21

Rated voltages: 100, 200 to 250, 400, 630 and 1,000V

Capacitance range: 0.001 to 1.0μF

Capacitance tolerance: ±5 (J) and 10 (K)

Voltage resistance: 2U (five seconds)

Dissipation factor: ≤0.8% (20°C, 10kHz)

Insulation resistance (20°C, 1 minute):

≥25,000Ω (CR ≤0.33μF)

≥7,500S (CR >0.33μF)
