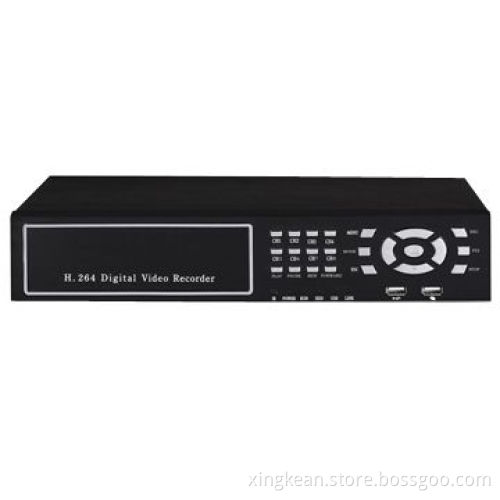

16-ch Standalone DVR with CMS Software, Supports 5 OS for Mobile Surveillance, HDMI Output and 3G

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Dual-stream: main-stream for local storage, to ensure qualityof video, sub-stream for network real-time transmission, to breakbottleneck of bandwidth
Supports DHCP, PPPOE, DNS, DDNS, UPNP, IP network thoroughassort Web, CMS and SDK
Remote access: built-in DDNS, makes network connection easy andsimple, also provides other domain name services such as 3322,dyndns, oray and myq-see
Digital zoom: in both preview and playback
UPnP (universal plug-and-play): no need to forward ports
Protectors: protects from thunder lighting and leakage ofelectricity from cameras
Supports email alarm
3G function optional
HDMI output

Specifications:

Main processor: HiSilicon 3520A
Operation system: Embedded Linux
Controls: USB mouse, IR remote, front panel and network
Image split: 1/4/9/16
Video standard:

PAL: 625 lines at 50fps

NTSC: 525 lines at 60fps)
Video compression: H.264
D1 preview quality:

PAL: 750 x 576 pixels

NTSC: 720 x 480 pixels
Playback qualities:
- 2-ch D1:

  PAL: 750 x 576 pixels

  NTSC: 720 x 480 pixels
- 14-ch CIF:

  PAL: 352 x 288 pixels

  NTSC: 352 x 240 pixels
Video detection: motion detection
MD zones: 396 (22 x 18), video loss and camera blank
Audio compression: G711A
Intercom: supports
Record modes: manual, alarm, motion and timing
Video search: time/date, alarm, motion detection, log, eventand channel
Record storage: local HDD, network
Backup modes: network, flash disk and movable HDD
Video types: 16-ch BNC input and 1-ch VGA, 1-ch BNC, 1-ch HDMIoutput
Audio types: 16-ch RCA input and 1-ch RCA (200 to 3000mV,5kΩ) output
Alarm: no
Network: RJ45 10M/100M self-adjusted Ethernet interface
PTZ: RS485
USB: 2 USB 2.0
SATA: 2HDD
DVD RW: optional
Mobile surveillance: supports iPhone, Android, Symbian, Windowsand Blackberry
Power supply: 12V DC at 50/60Hz
Working conditions: -10 to 55°C/10 to 90%RH/86 to106kPa
Dimensions: (L) 325x (W) 220x (H) 65mm

Dual-stream: main-stream for local storage, to ensure qualityof video, sub-stream for network real-time transmission, to breakbottleneck of bandwidth

Supports DHCP, PPPOE, DNS, DDNS, UPNP, IP network thoroughassort Web, CMS and SDK

Remote access: built-in DDNS, makes network connection easy andsimple, also provides other domain name services such as 3322,dyndns, oray and myq-see

Digital zoom: in both preview and playback

UPnP (universal plug-and-play): no need to forward ports

Protectors: protects from thunder lighting and leakage ofelectricity from cameras

Supports email alarm

3G function optional

HDMI output

Main processor: HiSilicon 3520A

Operation system: Embedded Linux

Controls: USB mouse, IR remote, front panel and network

Image split: 1/4/9/16

Video standard:

PAL: 625 lines at 50fps

NTSC: 525 lines at 60fps)

Video compression: H.264

D1 preview quality:

PAL: 750 x 576 pixels

NTSC: 720 x 480 pixels

Playback qualities:

2-ch D1:

PAL: 750 x 576 pixels

NTSC: 720 x 480 pixels
14-ch CIF:

PAL: 352 x 288 pixels

NTSC: 352 x 240 pixels

Video detection: motion detection

MD zones: 396 (22 x 18), video loss and camera blank

Audio compression: G711A

Intercom: supports

Record modes: manual, alarm, motion and timing

Video search: time/date, alarm, motion detection, log, eventand channel

Record storage: local HDD, network

Backup modes: network, flash disk and movable HDD

Video types: 16-ch BNC input and 1-ch VGA, 1-ch BNC, 1-ch HDMIoutput

Audio types: 16-ch RCA input and 1-ch RCA (200 to 3000mV,5kΩ) output

Alarm: no

Network: RJ45 10M/100M self-adjusted Ethernet interface

PTZ: RS485

USB: 2 USB 2.0

SATA: 2HDD

DVD RW: optional

Mobile surveillance: supports iPhone, Android, Symbian, Windowsand Blackberry

Power supply: 12V DC at 50/60Hz

Working conditions: -10 to 55°C/10 to 90%RH/86 to106kPa

Dimensions: (L) 325x (W) 220x (H) 65mm

2-ch D1:

PAL: 750 x 576 pixels

NTSC: 720 x 480 pixels

14-ch CIF:

PAL: 352 x 288 pixels

NTSC: 352 x 240 pixels
