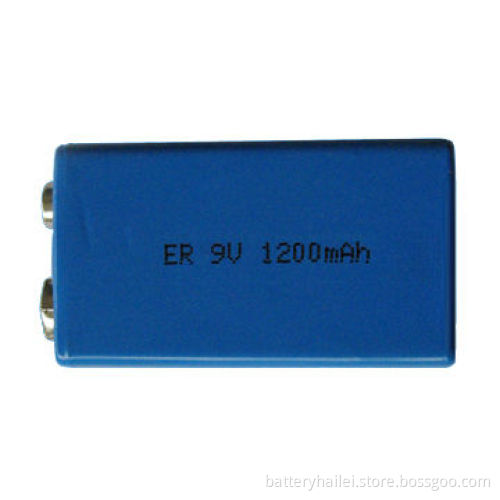

Li-SOCl2 Battery Square ER9V with 10.8V DC Nominal Voltage and 1,200mAh Capacity

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Nominal capacity: 1,200mAh (at 2mA +23C 2.0V DC cut off)

Nominal voltage: 10.8V DC

Standard discharge current: 1mA

Maximum continuous current: 35mA

Maximum pulse current: 100mA

Operating temperature range: -55 to +85°C

Storage temperature (recommended): +30°C maximum

Weight: 40g

Size: 16.9 x 26.0 x 48.8mm

Key features:

High operating voltage, stable during most of the applicationlifespan
Wide temperature range from -55 to +85°C
Performance independent from cell orientation
Superior shelf lifespan and reliability: over 10 years at roomtemperature and self-discharge rate is less than 1% of its nominalcapacity per year
Energy type is bobbin structure and best suited for low currentdischarge current, it may require depassivation before mediumcurrents can be delivered
Typical values relative to cells stored for one year or less at+30°C maximum

High operating voltage, stable during most of the applicationlifespan

Wide temperature range from -55 to +85°C

Performance independent from cell orientation

Superior shelf lifespan and reliability: over 10 years at roomtemperature and self-discharge rate is less than 1% of its nominalcapacity per year

Energy type is bobbin structure and best suited for low currentdischarge current, it may require depassivation before mediumcurrents can be delivered

Typical values relative to cells stored for one year or less at+30°C maximum
