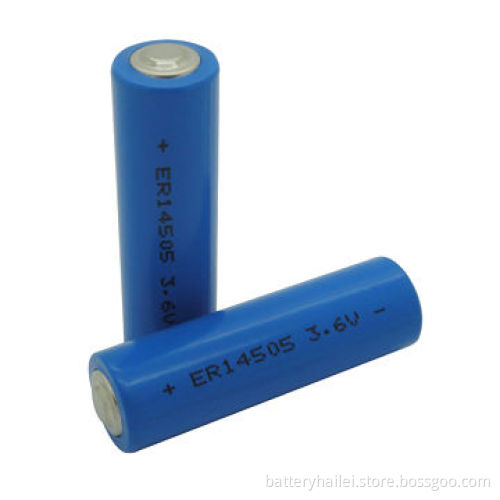

Li-SOCl2 Battery AA Size ER14505 with 3.6V Voltage and 2,400mAh Capacity, Used for Meters

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Nominal capacity: 2,400mAh (at 2mA, +23C, 2.0V cut-off)

Nominal voltage: 3.6V

Standard discharge current: 2mA

Maximum continuous current: 100mA

Maximum pulse current: 200mA

Operating temperature range: -55 to +85°C

Storage temperature (recommended): 30°C maximum

Weight: 22g

Size: 14.5 x 50.5mm

Key features:

High-operating voltage, stable during most of the applicationlifespan
Wide temperature range: -55 to +85°C
Performance independent from cell orientation
Superior shelf lifespan and reliability: over 10 years at roomtemperature and self-discharge rate is less than 1% of its nominalcapacity per year
Energy type: bobbin structure and good suited for low currentdischarge current
May require depassivation before medium currents can bedelivered
Typical values relative to cells stored for one year or less at+30°C maximum

High-operating voltage, stable during most of the applicationlifespan

Wide temperature range: -55 to +85°C

Performance independent from cell orientation

Superior shelf lifespan and reliability: over 10 years at roomtemperature and self-discharge rate is less than 1% of its nominalcapacity per year

Energy type: bobbin structure and good suited for low currentdischarge current

May require depassivation before medium currents can bedelivered

Typical values relative to cells stored for one year or less at+30°C maximum
