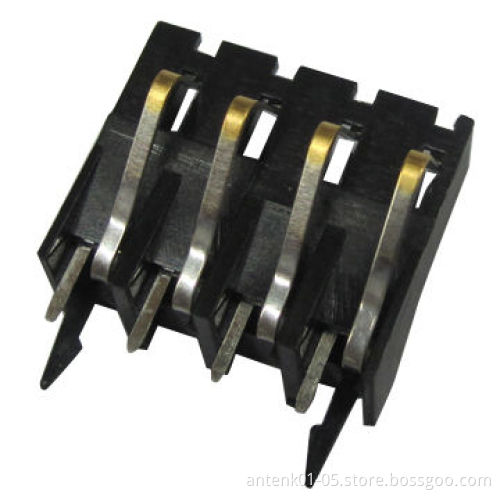

4.5mm battery connector 4p, vertical type, selective gold plated
  • 4.5mm battery connector 4p, vertical type, selective gold plated
  • 4.5mm battery connector 4p, vertical type, selective gold plated
4.5mm battery connector 4p, vertical type, selective gold plated
4.5mm battery connector 4p, vertical type, selective gold plated

4.5mm battery connector 4p, vertical type, selective gold plated

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Material:
    • Pin: Beryllium copper
    • Insulator: 30% glass-filled thermoplastic LCP or equivalent UL94V-0, black
    • Finish: contact: Gold flash (1°min) all over, 50-100 micro-inch (1.27-2.54 micron) nickel under plated all over solar
    • TAB:50-100 (1.24-2.54 micron) micro inch matte tin, 10-100 micro inches (1.27-2.54 micron nick plated)
  • Electrical specifications:
    • Voltage rating: 250V AC min
    • Current rating: 2.0 min
    • Dielectric strength: 1000V AC for 1 minute Min
    • Insulation: resistance: 1000 MEG Ohm Max
    • Contact resistance: 30 Mill OHM Max
    • Product withstanding reflow soldering 260° for 105
  • Mechanical specifications:
    • Durability: 5.000 cycles
    • Normal force: AT mated position: 60g min
    • Normal force at full stoke: 100g min
    • Parts to BT packaged in anti-static tape and reel for automatic placement
    • The cavity: ## IS 0.8+-0.1mm high with 0.10+-0.10mm
    • Recessed from surface
  • Pin: Beryllium copper
  • Insulator: 30% glass-filled thermoplastic LCP or equivalent UL94V-0, black
  • Finish: contact: Gold flash (1°min) all over, 50-100 micro-inch (1.27-2.54 micron) nickel under plated all over solar
  • TAB:50-100 (1.24-2.54 micron) micro inch matte tin, 10-100 micro inches (1.27-2.54 micron nick plated)
  • Voltage rating: 250V AC min
  • Current rating: 2.0 min
  • Dielectric strength: 1000V AC for 1 minute Min
  • Insulation: resistance: 1000 MEG Ohm Max
  • Contact resistance: 30 Mill OHM Max
  • Product withstanding reflow soldering 260° for 105
  • Durability: 5.000 cycles
  • Normal force: AT mated position: 60g min
  • Normal force at full stoke: 100g min
  • Parts to BT packaged in anti-static tape and reel for automatic placement
  • The cavity: ## IS 0.8+-0.1mm high with 0.10+-0.10mm
  • Recessed from surface
