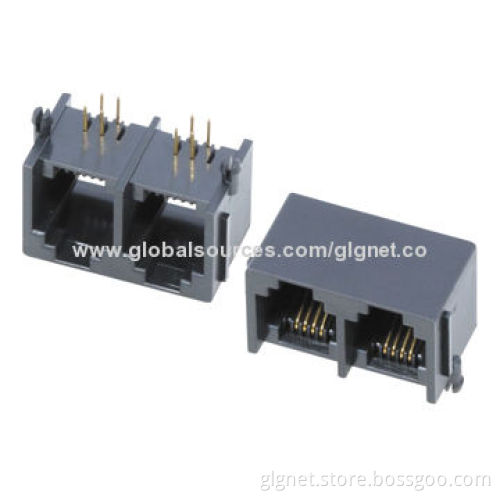

1*2 port, 6P6C/6P4C/6P2C modular jack, with ears on both sides
  • 1*2 port, 6P6C/6P4C/6P2C modular jack, with ears on both sides
1*2 port, 6P6C/6P4C/6P2C modular jack, with ears on both sides

1*2 port, 6P6C/6P4C/6P2C modular jack, with ears on both sides

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Pins: 6P6C, 6P4C and 6P2C
  • Materials:
    • Housing & insert: PBT, PA46.PA66 UL94V-0
    • Color: According to customer's request
    • Contact: Selective gold plated over nickel
  • Electrical specifications:
    • Rated voltage: 150V max.
    • Rated current: 1.5A max.
    • Dielectric withstanding voltage: 500V AC/min
    • Insulation resistance: 500 mΩ/min
  • Mechanical specifications:
    • Connector mating force: 30N max.
    • Plug retention force: 50N min.
    • Durability test: 750 Cycles min
    • Operating temperatures: -40 to +85℃
  • Package:
    • Plastic tray
  • RJ45 cavities conform to FCC rules and regulations part 68 subpart F
  • All the raw materials meet RoHS
  • Housing & insert: PBT, PA46.PA66 UL94V-0
  • Color: According to customer's request
  • Contact: Selective gold plated over nickel
  • Rated voltage: 150V max.
  • Rated current: 1.5A max.
  • Dielectric withstanding voltage: 500V AC/min
  • Insulation resistance: 500 mΩ/min
  • Connector mating force: 30N max.
  • Plug retention force: 50N min.
  • Durability test: 750 Cycles min
  • Operating temperatures: -40 to +85℃
  • Plastic tray
