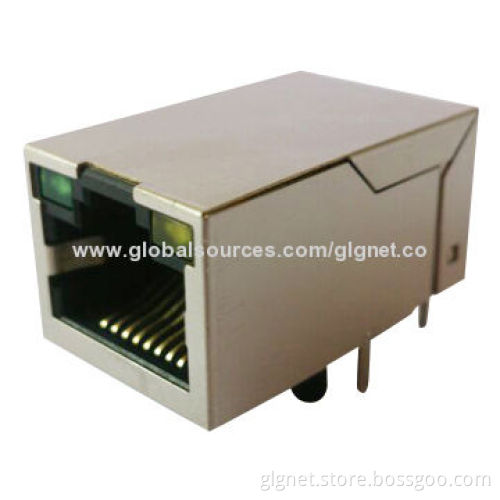

RJ45 1x1 Tab Up Through Hole 100Base-T Connector with LED, Transformer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials:

Housing: glass filled PA46 (black) UL94V-0 (RoHS)
RJ contact/plastic: filled PA46 (black) UL94V-0 (RoHS)
Shield: 0.2mm thickness with brass (C2680)
Jack cavity conforms to FCC rules and regulations part 68 subpart F
The part is recommended for wave soldering process peak, soldering temperature is 260°C maximum, 10 seconds (maximum)

Electrical specifications:

Operating temperature: 0 to 70°C
Storage temperature: -40 to 85°C
Turns ratio: 1:1 ±2%
Inductance (OCL): 350uH minimum at 100kHz/100mV with 8mA DC bias
Insertion loss: -1.0dB maximum at 0.3-100MHz
Return loss (Z-out = 100 Ohms): -18dB minimum at 1-30MHz, -13dB minimum at 30-60MHz, -10dB minimum at 60-100MHz
Crosstalk (adjacent channels): -40dB minimum at 0.3-30MHz, -35dB minimum at 30-60MHz, -30dB minimum at 60-100MHz
Common mode rejection ratio: -30dB minimum at 1-30MHz, -25dB minimum at 30-60MHz, -20dB minimum at 60-100MHz
DC resistance imbalance: 0.1A maximum at 48V DC (continuous)
DC current/voltage rating-PSE pins: 2,250V DC at 60 seconds
Package: by plastic tray
