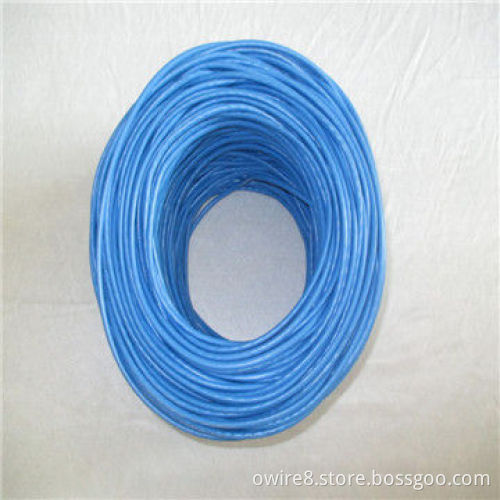

SFTP cat5e bare copper, networking cable

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

Specifications:

Features:

Applications:

Packing: 305m/carton

4P + F + Mylar + D + AL

Rated temperatures: 60 or 75℃

Unshielded twisted pairs

Conductor: 26AWG or 24AWG stranding or solid bare copper

Insulation: HD-PE

Filler: PE cross or FM-PE thin slice

Drain wires: 26AWG or 24AWG stranding or solid tinned copper

Outer shielded: AL-Mylar 100% (min) coverage

Un-rip rope: optional

Jacket: PVC or LSNH

Impedance: 100±15%Ω at 1~250MHz

Reference standard: YD/T1019-2001, ISO/IEC11801, ANSI/TIA/EIA-568B, UL 444

Flame retardancy standard: Passed CM or CMR

Separator inside the cable realizes the stable transmission of the data

High quality and low cost

Fast and reliable connection

Twisted pairs with bright color for easy recognition

Ripcord and footmark for convenient use

Smooth jacket for easy pulling in tight space

UTP, FTP, STP cable are available

Color in light grey, dark grey, blue, white or as per your requirement

Computer network cabling project

Broadband network communication

Digital ISDN network and ATM 155Mbps network

Ethernet network

Audio and data transmission
