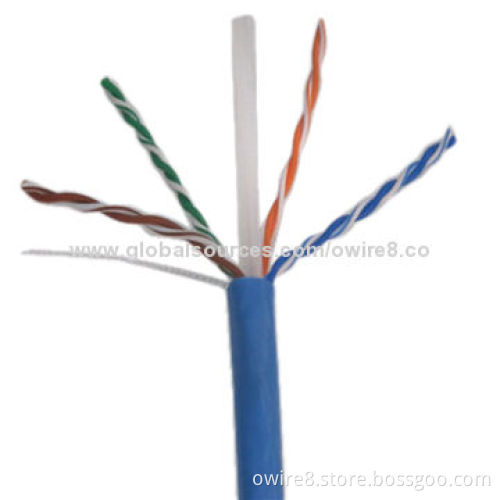

Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
  • Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
  • Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
  • Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
  • Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
  • Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
  • Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
  • Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
  • Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG
Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG

Cat6 UTP Cable, 305m High Speed, 4pr, 23AWG

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Product description:
    • 4x2x23 AWG copper or CCA
    • HDPE insulation
    • PVC jacket
    • Construction: conductor 23AWG, copper 0.565± 0.02mm
    • Insulation HDPE 1.04± 0.06mm
    • Cores/pairs: 8/4
    • Sheath: 6.3± 0.1mm PVC/LSOH/PVC (UV)/PE
  • Mechanical properties:
    • Elongation min: 300%
    • Temperature range: -20 up to 75°C
    • Tensile strength min: 1.68kg/mm²
    • Electrical properties (at 20)
    • Conductor resistance: max 9.38Ω /100m
    • Resistance unbalance: max 2%
    • Insulation resistance: max 150Ω/km
    • Mutual capacitance: max 5600pF/100m
    • Capacitance unbalance: max 330pF/100m
    • Impedance: 250±0.15
    • Spark test: 2,000V
    • Velocity of propagation: 67%
  • Warmly welcome to our store:
    • all of products we offer are in top quality and competitive price
    • OEM orders are welcome
    • payment: we accept T/T and L/C
  • Packaging:
    • packaging lengths: 305m/roll, other lengths are available according to client's requirements
    • inner packaging: wooden reel, plastic reel, and paper reel are available
    • outer packaging: carton box, pull box
    • other packaging is available according to client's requirements
  • 4x2x23 AWG copper or CCA
  • HDPE insulation
  • PVC jacket
  • Construction: conductor 23AWG, copper 0.565± 0.02mm
  • Insulation HDPE 1.04± 0.06mm
  • Cores/pairs: 8/4
  • Sheath: 6.3± 0.1mm PVC/LSOH/PVC (UV)/PE
  • Elongation min: 300%
  • Temperature range: -20 up to 75°C
  • Tensile strength min: 1.68kg/mm²
  • Electrical properties (at 20)
  • Conductor resistance: max 9.38Ω /100m
  • Resistance unbalance: max 2%
  • Insulation resistance: max 150Ω/km
  • Mutual capacitance: max 5600pF/100m
  • Capacitance unbalance: max 330pF/100m
  • Impedance: 250±0.15
  • Spark test: 2,000V
  • Velocity of propagation: 67%
  • all of products we offer are in top quality and competitive price
  • OEM orders are welcome
  • payment: we accept T/T and L/C
  • packaging lengths: 305m/roll, other lengths are available according to client's requirements
  • inner packaging: wooden reel, plastic reel, and paper reel are available
  • outer packaging: carton box, pull box
  • other packaging is available according to client's requirements
