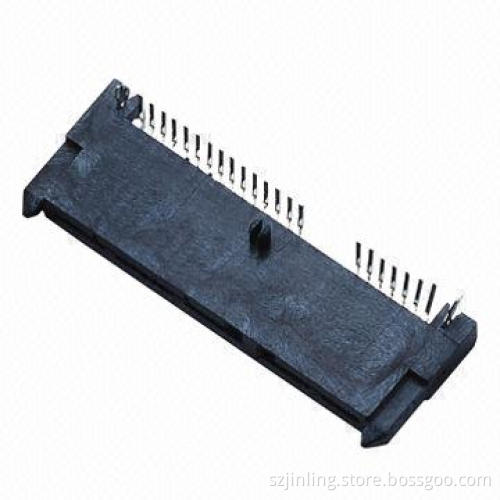

PCB Assembly, SATA Connector 7+415P Two-in-one Female Header DIP

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Current rating: 1AMP
Operation temperature: -55 to 125°C
Contact resistance: 40mΩ (maximum)
Insulation resistance: 1,000M Ω (minimum)
Electric withstanding: AC 1,000V/minute
Materials:
- Housing: LCP UL94V-0
- Color: black
- Contact: Phosphor bronze
- Peg: brass
- Finish:
  - Contact:
    - 3u" gold/tin plating on contact area
    - 100u" min tin-lead plating on solder-tails
    - 50u" min nickel under-plating overall
  - PEG:
    - 100u" min. tin-Lead plating on solder-tails
    - 50u" min. nickel under-plating overall
Ordering information:
- Function: solder type/smt type
- Contact plating: gold flash, tin, 10u" gold/tin, 15u" gold/tin, 30u" gold/tin
- Color type: black/white
Our advantages:
- All kinds of our products got the certification of ROHS
- We can take promptly shipment and give you the competitive price with high quality
- Rich experience in manufacturing
- Our products are extensively used in electronic and other industries
- Well-equipped testing facilities and strong technical force
- Our factory has passed the the ISO9001:2000 certification and ISO1400 certification
- We are very glad to make samples according to your graph paper and specification
