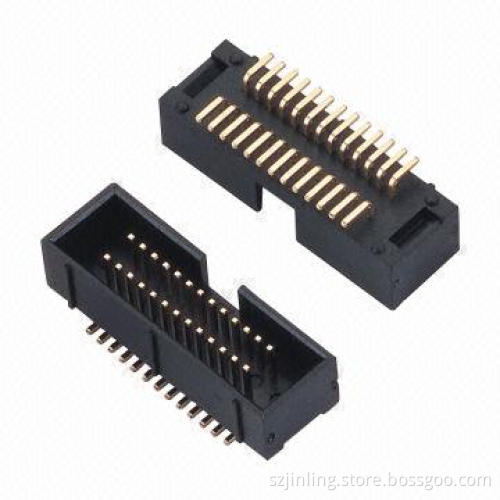

1.27 x 2.54mm box header, SMT type with height of 7.1mm
  • 1.27 x 2.54mm box header, SMT type with height of 7.1mm
  • 1.27 x 2.54mm box header, SMT type with height of 7.1mm
1.27 x 2.54mm box header, SMT type with height of 7.1mm
1.27 x 2.54mm box header, SMT type with height of 7.1mm

1.27 x 2.54mm box header, SMT type with height of 7.1mm

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Current rating: 1Amp
    • Operating temperature: -40 to 105°C
    • Contact resistance: 20mΩ maximum
    • Insulation resistance: 1,000M Ω minimum
    • Withstanding voltage: AC 500V
    • Insulator material: polyester (UL94v-0)
    • Standard: PA6T
    • Contact material: brass
    • Contact plating: Au or Sn over 50U" Ni
  • Ordering information:
    • Plastics height: 7.1mm
    • Number of pins per row: 6 - 64
    • Contact plating: tin/gold flash/5u" gold/10u" gold/15u" gold/30u" gold
    • Insulator material options: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/BK-LCP/special
    • Connector types: straight/right angle, SMT type
  • Our advantages:
    • We are devoted to provide professional service for the interconnect products and the best connection projects
    • With the best quality and competitive price as possible as we can
    • We mainly produce the connectors on the internet,storage,digital computer and the related products
    • We have strong research and development team of products and mold design
    • All kinds of our products got the certificate of RoHS
    • Our factory has passed the ISO9001:2000 and ISO1400 certificates
    • We are very glad to make samples according to your graph paper and specifications
    Download more information about this product
  • Current rating: 1Amp
  • Operating temperature: -40 to 105°C
  • Contact resistance: 20mΩ maximum
  • Insulation resistance: 1,000M Ω minimum
  • Withstanding voltage: AC 500V
  • Insulator material: polyester (UL94v-0)
  • Standard: PA6T
  • Contact material: brass
  • Contact plating: Au or Sn over 50U" Ni
  • Plastics height: 7.1mm
  • Number of pins per row: 6 - 64
  • Contact plating: tin/gold flash/5u" gold/10u" gold/15u" gold/30u" gold
  • Insulator material options: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/BK-LCP/special
  • Connector types: straight/right angle, SMT type
  • We are devoted to provide professional service for the interconnect products and the best connection projects
  • With the best quality and competitive price as possible as we can
  • We mainly produce the connectors on the internet,storage,digital computer and the related products
  • We have strong research and development team of products and mold design
  • All kinds of our products got the certificate of RoHS
  • Our factory has passed the ISO9001:2000 and ISO1400 certificates
  • We are very glad to make samples according to your graph paper and specifications
