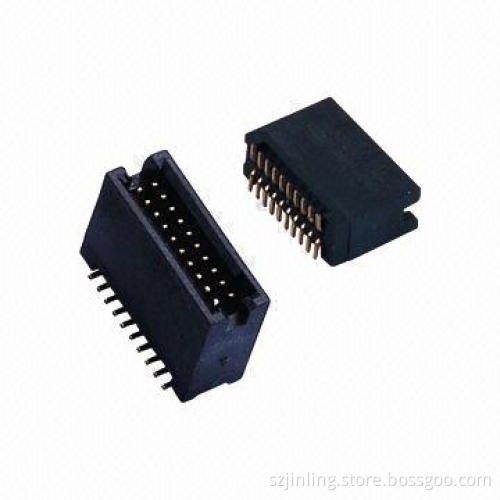

1.27mm Box Headers with 1,000mΩ Insulation Resistance, 8.9mm Height, SMT Type, Elevator
- Payment Type:
- T/T
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|
- Current rating: 1Amp
- Operating temperature: -40 to +105°C
- Contact resistance: 20m© (maximum)
- Insulation resistance: 1,000m© (minimum)
- Withstanding voltage: 1,000V AC
- Insulator material: polyester (UL94v-0)
- Standard: PA6T
- Contact material: brass
- Contact plating: Au or Sn over 50U" Ni
- Plastic height: 8.9mm
- Number of rows: dual-row
- Contact plating: tin/gold flash/5/10/15/30U" gold
- Insulator material option: PBT/PA66/PA6T/PA46/LCP
- Connector types: straight/right angle, SMT type
