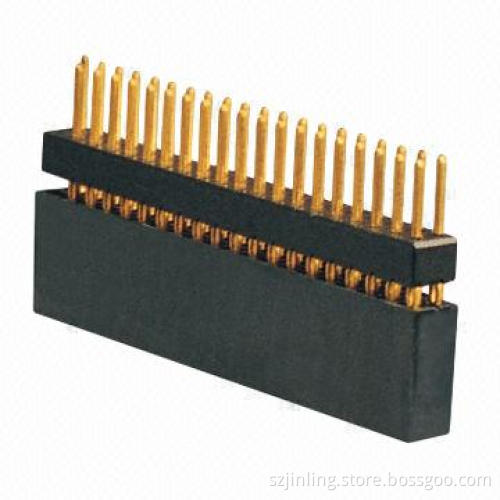

2.54mm Female Header, PC 104 Terminal Free Welding DIP Type, 500V AC Withstanding Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Ordering information:

Plastics height: 11 + 2.5mm insulator
Number of pins per row: 2 x 2/2 x 32P
Contact plating: tin/gold flash/5u-inch gold/10u-inch gold/15u-inch gold/30u-inch gold
Insulator material option: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/Bk-LCP/special
Connector type: straight/right angle

Our advantages:

All kinds of our products got the certification of RoHS
We can take promptly shipment and give you the competitive price with high-quality
Rich experience in manufacturing
Our products are extensively used in electronic and other industries
Well-equipped testing facilities and strong technical force
We are very glad to make samples according to your graph paper and specification

Current rating: 3.0A

Operating temperature: -40 to +105°C

Contact resistance: 20mΩ (maximum)

Insulation resistance: 1,000MΩ (minimum)

Withstanding voltage: 500V AC

Insulator material: polyester (UL94V-0)

Standard: nylon-6T

Contact material: brass

Contact plating: Au over 50U-inch Ni

Plastics height: 11 + 2.5mm insulator

Number of pins per row: 2 x 2/2 x 32P

Contact plating: tin/gold flash/5u-inch gold/10u-inch gold/15u-inch gold/30u-inch gold
