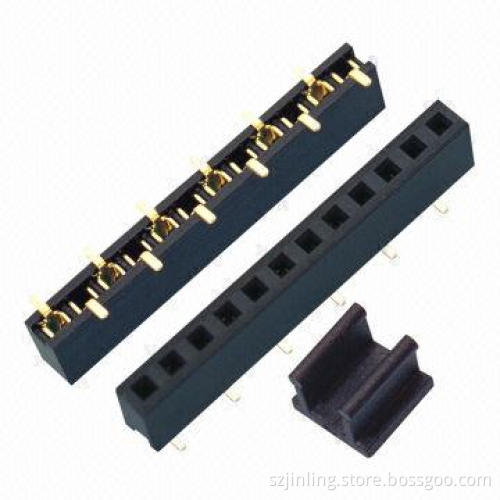

2.0mm Pitch Female Headers, Single Row, SMT Type, 4.0/4.3/4.6mm Height
  • 2.0mm Pitch Female Headers, Single Row, SMT Type, 4.0/4.3/4.6mm Height
2.0mm Pitch Female Headers, Single Row, SMT Type, 4.0/4.3/4.6mm Height

2.0mm Pitch Female Headers, Single Row, SMT Type, 4.0/4.3/4.6mm Height

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Current rating: 1.5A
    • Operating temperature: -40 to +105°C
    • Contact resistance: 20mΩ (maximum)
    • Insulation resistance: 1,000MΩ (minimum)
    • Withstanding voltage: 500V AC
    • Insulator material: polyester (UL94V-0)
    • Standard: nylon-6T
    • Contact material: brass
    • Contact plating: Au over 50U-inch Ni
  • Ordering information:
    • Plastics height: 4.0/4.3/4.6mm
    • Number of pins per row: 1 x 40/1 to 40
    • Contact plating: tin/gold flash/5u-inch gold/10u-inch gold/15u-inch gold/30u-inch gold
    • Insulator material option: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/Bk-LCP/special
    • Connector types: SMT, straight/right angle
  • Our advantages:
    • All kinds of our products got the certification of RoHS
    • Rich experience in manufacturing
    • Our products are extensively used in electronic and other industries
    • Well-equipped testing facilities and strong technical force
    • We are very glad to make samples according to your graph paper and specification
  • Current rating: 1.5A
  • Operating temperature: -40 to +105°C
  • Contact resistance: 20mΩ (maximum)
  • Insulation resistance: 1,000MΩ (minimum)
  • Withstanding voltage: 500V AC
  • Insulator material: polyester (UL94V-0)
  • Standard: nylon-6T
  • Contact material: brass
  • Contact plating: Au over 50U-inch Ni
  • Plastics height: 4.0/4.3/4.6mm
  • Number of pins per row: 1 x 40/1 to 40
  • Contact plating: tin/gold flash/5u-inch gold/10u-inch gold/15u-inch gold/30u-inch gold
  • Insulator material option: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/Bk-LCP/special
  • Connector types: SMT, straight/right angle
  • All kinds of our products got the certification of RoHS
  • Rich experience in manufacturing
  • Our products are extensively used in electronic and other industries
  • Well-equipped testing facilities and strong technical force
  • We are very glad to make samples according to your graph paper and specification
