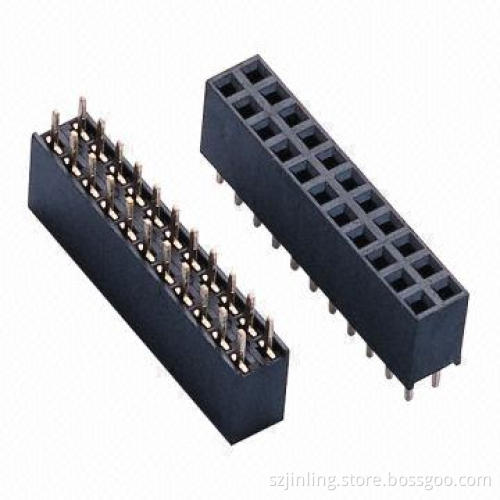

Dual-row with Straight Angle 2.54mm Female Header Y-type Terminal

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Ordering information:

Number of pins per row: 2 x 40/2 to 80
Plastics height: 0.65/1.5/2.0/2.54mm
Contact plating: tin/gold flash/5u-inch gold/10u-inch gold/15u-inch gold/30u-inch gold
Insulator material option: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/Bk-LCP/special

Our advantages:

All kinds of our products got the certification of RoHS mark
Rich experience in manufacturing
Our products are extensively used in electronic and other industries
Well-equipped testing facilities and strong technical force
We are very glad to make samples according to your graph paper and specification

Current rating: 3.0AMP

Operation temperature: -40 to +105°C

Contact resistance: 20mΩ (maximum)

Insulation resistance: 1,000MΩ (minimum)

Withstanding voltage: 500V AC

Insulator material: polyester (UL94V-0)

Standard: PBT

Contact material: brass

Contact plating: Au over 50U-inch Ni

Number of pins per row: 2 x 40/2 to 80

Plastics height: 0.65/1.5/2.0/2.54mm

Contact plating: tin/gold flash/5u-inch gold/10u-inch gold/15u-inch gold/30u-inch gold
