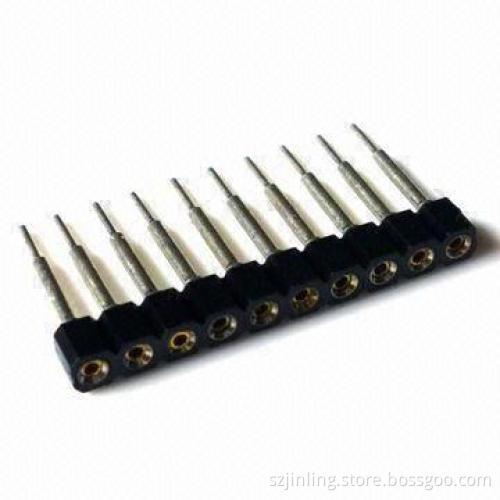

Bodkin Long Pin 2.54mm IC Socket, Dual-row, Straight Angle, 3AMP Current Rating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Current rating: 3AMP

Operating temperatures: -40 to +105°C

Contact resistance: 20mΩ (maximum)

Insulation resistance: 1,000MΩ (minimum)

Withstanding voltage: 1,000V AC

Insulator material: polyester (UL94v-0)

Standard: PPS

Contact material: brass

Contact plating: Au or Sn over 50U-inch Ni

Plastic heights: 3.0/3.5/7.0mm

Number of rows: single row/dual-row

Contact plating: tin/gold flash/5/10/15/30U-inch gold

Insulator material optional: PBT/PA66/PA6T/PA46/LCP

Connector type: straight/right angle

All kinds of our products got the certification of RoHS
