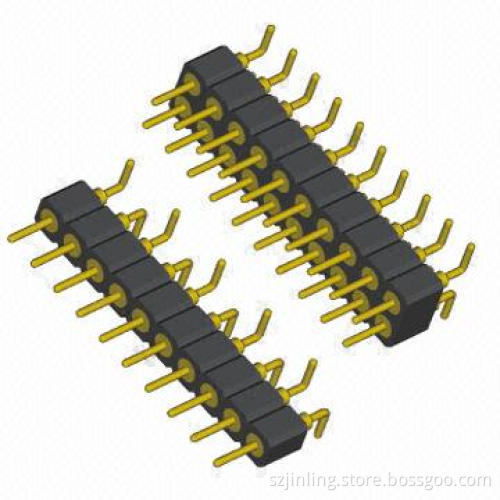

Round pin header 2.54mm pitch SMT type single/dual row
  • Round pin header 2.54mm pitch SMT type single/dual row
Round pin header 2.54mm pitch SMT type single/dual row

Round pin header 2.54mm pitch SMT type single/dual row

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Current rating: 3AMP
    • Operation temperatures: -40 to 105°C
    • Contact resistance: 20mΩ max.
    • Insulation resistance: 1,000M Ω Min.
    • Withstanding voltage:AC 1000V
    • Insulator material: Polyester (UL94v-0)
    • Standard: PPS
    • Contact material: Brass
    • Contact plating: Au or Sn over 50U" Ni
  • Ordering information:
    • Plastic heights: 3.0mm/3.5mm/7.0mm
    • No. of rows: single row/dual row
    • Contact plating: Tin/gold flash/5U" gold/10U" gold/15U" gold/30U" gold
    • Connector type: straight/right angle, SMT
  • Our advantages:
    1. All kinds of our products got the certification of RoHS
    2. We can take promptly shipment and give you the competitive price with high quality
    3. Rich experience in manufacturing
    4. Our products are extensively used in electronic and other industries
    5. Well-equipped testing facilities and strong technical force
    6. Our factory has passed the the ISO9001:2000 certification and ISO1400 Certification
    7. We are very glad to make samples according to your graph paper and specification
  • Current rating: 3AMP
  • Operation temperatures: -40 to 105°C
  • Contact resistance: 20mΩ max.
  • Insulation resistance: 1,000M Ω Min.
  • Withstanding voltage:AC 1000V
  • Insulator material: Polyester (UL94v-0)
  • Standard: PPS
  • Contact material: Brass
  • Contact plating: Au or Sn over 50U" Ni
  • Plastic heights: 3.0mm/3.5mm/7.0mm
  • No. of rows: single row/dual row
  • Contact plating: Tin/gold flash/5U" gold/10U" gold/15U" gold/30U" gold
  • Connector type: straight/right angle, SMT
