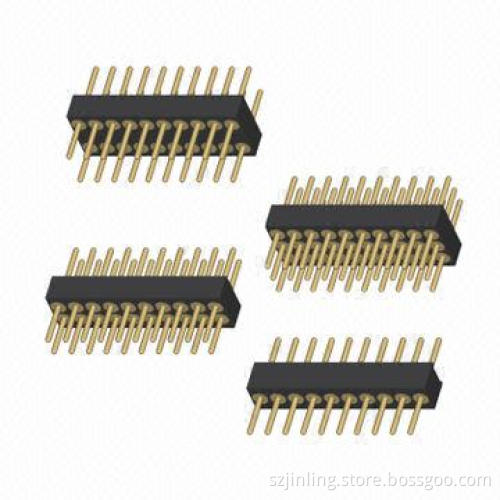

Straight Pins, Dual-row 1.27mm Pitch Machined Parts, 3.8mm Height, 0.5N Insertion, 0.2N Withdrawal
- Payment Type:
- T/T
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|
- Positions: 1 x 2P-1 x 50P/2 x 2P-2 x 50P/3 x 2P-3 x 50P
- Flammability: PPS UL94V-0
- Sleeve: C3604 brass
- Contact clip (6 fingers): C17300
- Accepted pin: Ø0.31 to 0.48mm
- Force: polished steel gauge Ø0.381mm
- Insertion: 0.5N (typical)
- Withdrawal: 0.2N (typical)
- Mechanical lifespan: 500 cycles (minimum)
- Rated current: 1A
- Contact resistance: 20mΩ/minute (maximum)
- Dielectric resistance: 500V RMS (minimum)
-
