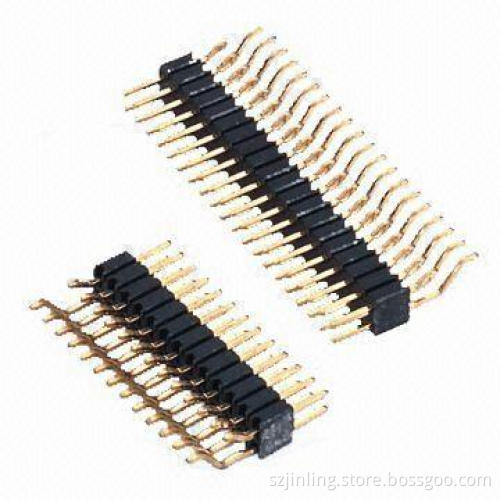

Right angle SMT type 1.27mm pin header, single/dual row
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T |
|---|
Product Description
Product Description
- Current rating: 1AMP
- Operation temperatures: -40°C to +105°C
- Contact resistance: 20m Ω Max.
- Insulation resistance: 1000M Ω Min
- Withstanding voltage: AC 500V
- Insulator material: high temperature
- Thermo plastic 9UL94V-0)
- Contact material: brass
- Contact plating: Au or Sn over 50U''Ni
- Plastics height: H=0.65mm/1.0mm/1.5mm/2.0mm/2.5mm
- No. of pins per row: 1 x 50/1~50
- Contact plating: tin/gold flash/5u" gold/10u" gold/15u" gold/30u" gold
- Insulator material option: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/Bk-LCP/special
- Connector type: straight/right angle SMT, right angle SMT
