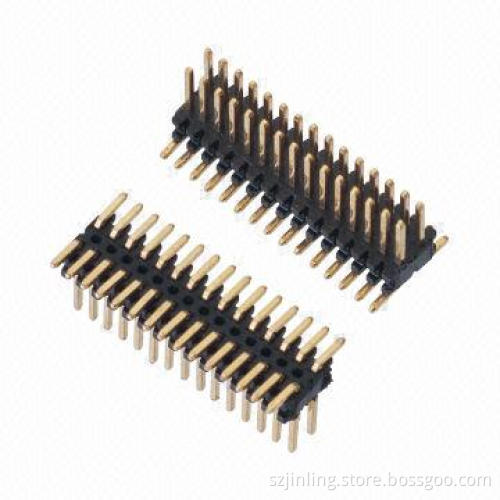

0.8 x 1.2mm Pin Headers, Dual Row SMT Type Phosphor Bronze Terminal
  • 0.8 x 1.2mm Pin Headers, Dual Row SMT Type Phosphor Bronze Terminal
0.8 x 1.2mm Pin Headers, Dual Row SMT Type Phosphor Bronze Terminal

0.8 x 1.2mm Pin Headers, Dual Row SMT Type Phosphor Bronze Terminal

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Current rating: 0.75AMP
    • Operation temperature: -40 to +105°C
    • Contact resistance: 20mΩ
    • Insulation resistance: 1,000MΩ
    • Withstanding voltage: 500V AC
    • Insulator material: polyester (UL94V-0)
    • Standard: nylon-6T/PBT
    • Contact material: brass
    • Contact plating: Au over 50U'' Ni
  • Ordering information:
    • Number of pins per row: 1 x 40/1 to 40
    • Plastics height: 1.2mm
    • Contact plating: tin/gold flash/5u" gold/10u" gold/15u" gold/30u" gold
    • Insulator material option: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/Bk-LCP/special
  • Current rating: 0.75AMP
  • Operation temperature: -40 to +105°C
  • Contact resistance: 20mΩ
  • Insulation resistance: 1,000MΩ
  • Withstanding voltage: 500V AC
  • Insulator material: polyester (UL94V-0)
  • Standard: nylon-6T/PBT
  • Contact material: brass
  • Contact plating: Au over 50U'' Ni
  • Number of pins per row: 1 x 40/1 to 40
  • Plastics height: 1.2mm
  • Contact plating: tin/gold flash/5u" gold/10u" gold/15u" gold/30u" gold
  • Insulator material option: BK-PBT/BK-PA66/BK-PA6T/BK-PA46/Bk-LCP/special
