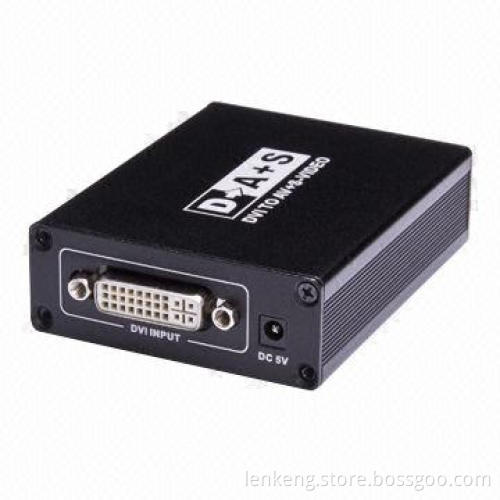

DVI to CVBS/S-video Converter with 5V DC/1A Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

DVI to analog CVBS/S-video converter allows you to convert DVI to analog CVBS/SV signal output simultaneously

Supports the most popular DVI input resolution and can support 1,920 x 1,080P at 60Hz the highest

Use the dip switch to switch between PAL and NTSC easily

Power supply: 5V DC/1A

DVI input:

Output CVBS 1.0Vp-p:

Input device: supports 1,920 x 1,080 pixels at 60Hz the highest

Working temperatures: 0-40°C

Working humidity range: 20-80% RH

Dimensions: 91.2 x 64.3 x 23.6mm

Net weight: 110g

800 x 600 at 56/60/72/75Hz

1,024 x 768P at 60/70/75Hz

1,152 x 864 at 75Hz

1,280 x 720P at 60Hz

1,280 x 960P at 60Hz

1,280 x 1,024P at 60/75Hz

1,360 x 768P at 60Hz

1,366 x 768P at 60Hz

1,440 x 900P at 60Hz

1,680 x 1,050P at 60Hz

1,920 x 1,080P at 60Hz

S-video: (Y: 1.0Vp-p C: 0.3Vp-p)

Output system: PAL-D/NTSC-M

Input ports: DVI-I x 1, DC 1.7mm x 1

Output ports: CVBS x 1, S-video x 1, blue LED x 1
