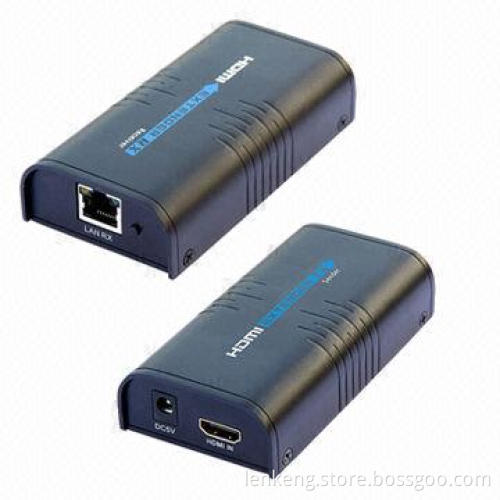

HDMI® Extenders, Over Single Cat5e/6, Up to 120m, TCP/IP Protocol
  • HDMI® Extenders, Over Single Cat5e/6, Up to 120m, TCP/IP Protocol
  • HDMI® Extenders, Over Single Cat5e/6, Up to 120m, TCP/IP Protocol
HDMI® Extenders, Over Single Cat5e/6, Up to 120m, TCP/IP Protocol
HDMI® Extenders, Over Single Cat5e/6, Up to 120m, TCP/IP Protocol

HDMI® Extenders, Over Single Cat5e/6, Up to 120m, TCP/IP Protocol

Get Latest Price
Payment Type:
T/T, PayPal, L/C or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, L/C or Western Union
Product Description
Product Description
  • Introduction:
    • It is the complete solution to solve the image mosaic, colordistortion, transmission failure and other problems when HDMI®signal long distance transmitted
    • It's the professional signal transmission system which combinesthe function of HDMI® signal conversion, reception andreduction and designed for high-quality HDMI® video signallong-range extension of display system project, such as big screencurtain wall advertising project, industrial automatic control,armamentarium, CCTV, multimedia instruction and more
    • It is designed to convert HDMI® to network data based onstandard TCP/IP protocol, and transmit it by Cat5 cable or LAN to adistance maximum 120 meters away
  • Features:
    • Input/output: 1 x HDMI®, 1 x LAN
    • Extend HDMI® up to 100 meters for 1,080P over one Cat5
    • Standard TCP/IP protocol, follow the standard of IEEE-568B
    • Supports resolution up to 1,080P full HD
    • Supports Ethernet bandwidth: 100m
    • HDCP compliant
    • Support all HDMI® resolution input/output:
      • 480i/480P at 60Hz, 576i at 576P at 50Hz, 720P/1,080i/1,080P at50/60Hz
    • Extends by router connection of LAN connection, cable lengthrequirements are as follows:
      • Cat5 maximum 80m between two devices
      • Cat5e maximum 100m between two devices
      • Cat6 maximum 120m between two devices
  • It is the complete solution to solve the image mosaic, colordistortion, transmission failure and other problems when HDMI®signal long distance transmitted
  • It's the professional signal transmission system which combinesthe function of HDMI® signal conversion, reception andreduction and designed for high-quality HDMI® video signallong-range extension of display system project, such as big screencurtain wall advertising project, industrial automatic control,armamentarium, CCTV, multimedia instruction and more
  • It is designed to convert HDMI® to network data based onstandard TCP/IP protocol, and transmit it by Cat5 cable or LAN to adistance maximum 120 meters away
  • Input/output: 1 x HDMI®, 1 x LAN
  • Extend HDMI® up to 100 meters for 1,080P over one Cat5
  • Standard TCP/IP protocol, follow the standard of IEEE-568B
  • Supports resolution up to 1,080P full HD
  • Supports Ethernet bandwidth: 100m
  • HDCP compliant
  • Support all HDMI® resolution input/output:
    • 480i/480P at 60Hz, 576i at 576P at 50Hz, 720P/1,080i/1,080P at50/60Hz
  • Extends by router connection of LAN connection, cable lengthrequirements are as follows:
    • Cat5 maximum 80m between two devices
    • Cat5e maximum 100m between two devices
    • Cat6 maximum 120m between two devices
  • 480i/480P at 60Hz, 576i at 576P at 50Hz, 720P/1,080i/1,080P at50/60Hz
  • Cat5 maximum 80m between two devices
  • Cat5e maximum 100m between two devices
  • Cat6 maximum 120m between two devices
