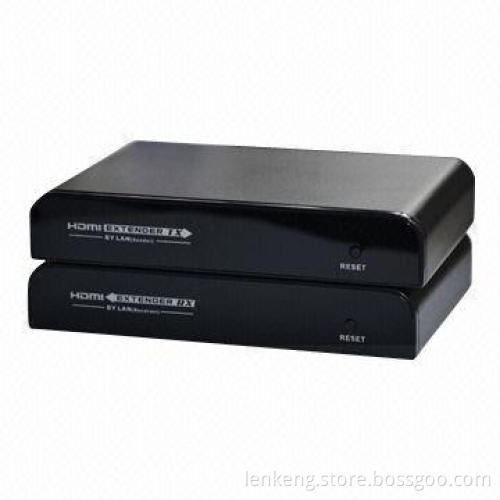

HDMI® Extender, Over-single CAT5e/6 with IR, Up to 120m

HDMI® Extender, Over-single CAT5e/6 with IR, Up to 120m

Get Latest Price

Payment Type:: T/T, PayPal, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

Description:

This is the complete solution to solve the image mosaic, colordistortion, transmission failure and other problems when HDMI®signal long distance transmitted
It's designed for high-quality HDMI® video signallong-range extension of display system project, such as big screencurtain wall advertising project, industrial automatic control,armamentarium, CCTV, multimedia instruction and more
It is designed to convert HDMI® to network data based onstandard TCP/IP protocol and transmit it by CAT5 cable or LAN to adistance maximum 120 meters away

Features:

Input/output: 1 x HDMI®, 1 x fiber, 1 x IR
Support HDMI® input: 720p/1,080i/1,080p at 50/60Hz,576i/576p at 50Hz, 480i/480p at 60Hz
Support HDMI® output: 480p/60Hz, 576p/50Hz, 720p/1,080p at60/50Hz
Standard TCP/IP protocol, follow the standard of IEEE-568B
IR remote control carrier frequency: 38kHz
Bandwidth frequency: 10.2Gbps
Power consumption: 3W (maximum) each
Extend HDMI® up to 100 meters for 1,080 pixels over oneCAT5
Follow the standard of IEEE-568B
Supports resolution up to 1,080 pixels full HD
Supports Ethernet bandwidth: 100m

Extends by router connection of LAN connection, cable lengthrequirements are as follows:

CAT5 maximum 80m between two devices
CAT5e maximum 100m between two devices
CAT6 maximum 120m between two devices

Applications:

LCD and plasma flat panel multimedia advertising project
Big screen LED curtain wall display project
The large projection equipment display system
The industrial automation and control system
Audio/video meeting system
Medical monitoring system
Security monitoring system
Multimedia network education system
Long-distance network server monitoring
Central control system
Military exercises command system
Orting transmission

This is the complete solution to solve the image mosaic, colordistortion, transmission failure and other problems when HDMI®signal long distance transmitted

It's designed for high-quality HDMI® video signallong-range extension of display system project, such as big screencurtain wall advertising project, industrial automatic control,armamentarium, CCTV, multimedia instruction and more

It is designed to convert HDMI® to network data based onstandard TCP/IP protocol and transmit it by CAT5 cable or LAN to adistance maximum 120 meters away

Input/output: 1 x HDMI®, 1 x fiber, 1 x IR

Support HDMI® input: 720p/1,080i/1,080p at 50/60Hz,576i/576p at 50Hz, 480i/480p at 60Hz

Support HDMI® output: 480p/60Hz, 576p/50Hz, 720p/1,080p at60/50Hz

Standard TCP/IP protocol, follow the standard of IEEE-568B

IR remote control carrier frequency: 38kHz

Bandwidth frequency: 10.2Gbps

Power consumption: 3W (maximum) each

Extend HDMI® up to 100 meters for 1,080 pixels over oneCAT5

Follow the standard of IEEE-568B

Supports resolution up to 1,080 pixels full HD

Supports Ethernet bandwidth: 100m

CAT5 maximum 80m between two devices
