Product Description

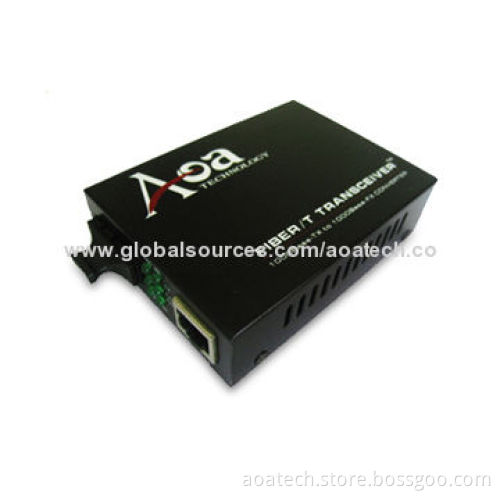

AOM-2100 series 1000M Ethernet media converter complies with IEEE802.3/ab Gigabit Ethernet standard

Supports two types of media network connections: 1000Base-T to1000Base-SX/LX

Features:

Full-duplex and half-duplex auto-sensed
Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
Supporting the transmission of extra-long VLAN packets
Supporting quality of service (QoS) and ensuring the transmission of VoIP packets
Supporting STP to form a redundant network
Compliant with IEEE1000Base-T and 1000Base-SX/LC
Optional 19 systems chassis with double power supply
SFP socket for main brand SFP modules

Application: 1000Mbps Gigabit optical Ethernet long-distance transmitting network

Technical indexes:

Access mode: 10/100/1000Mbps Gigabit Ethernet
Standard: IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1dspanning tree
Transmission distance: up to SFP modules
Port: 1 x RJ45 connector: connected to STP/UTP category-5 twisted pair and 1 x SFP slot
Conversion means:
- Delay: <10us
- BER: <10-9
- MTBF: 100,000 hours
LED: PWR (power supply), FX Link (optical link action), TPLINK1000 (twisted pair link 1000M), TP LINK100 (twisted pair link 100m), TP ACT (twisted pair packet forwarding)
Power: 220V AC, 0.5A/48V DC (built-in)
Power consumption: 5W
Operating temperature: -10-55ºC
Operating humidity range: 5-90% RH
Maintaining temperature: -40-70ºC
Maintaining humidity range: 5-90% RH non-condensing
Dimension (external): 94 x 71 x 26mm

Full-duplex and half-duplex auto-sensed

Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation

Supporting the transmission of extra-long VLAN packets

Supporting quality of service (QoS) and ensuring the transmission of VoIP packets

Supporting STP to form a redundant network

Compliant with IEEE1000Base-T and 1000Base-SX/LC

Optional 19 systems chassis with double power supply

SFP socket for main brand SFP modules

Access mode: 10/100/1000Mbps Gigabit Ethernet

Standard: IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1dspanning tree

Transmission distance: up to SFP modules

Port: 1 x RJ45 connector: connected to STP/UTP category-5 twisted pair and 1 x SFP slot

Conversion means:

Delay: <10us
BER: <10-9
MTBF: 100,000 hours

LED: PWR (power supply), FX Link (optical link action), TPLINK1000 (twisted pair link 1000M), TP LINK100 (twisted pair link 100m), TP ACT (twisted pair packet forwarding)

Power: 220V AC, 0.5A/48V DC (built-in)

Power consumption: 5W

Operating temperature: -10-55ºC

Operating humidity range: 5-90% RH

Maintaining temperature: -40-70ºC

Maintaining humidity range: 5-90% RH non-condensing

Dimension (external): 94 x 71 x 26mm

Delay: <10us

BER: <10-9

MTBF: 100,000 hours
