Product Description

Specifications:

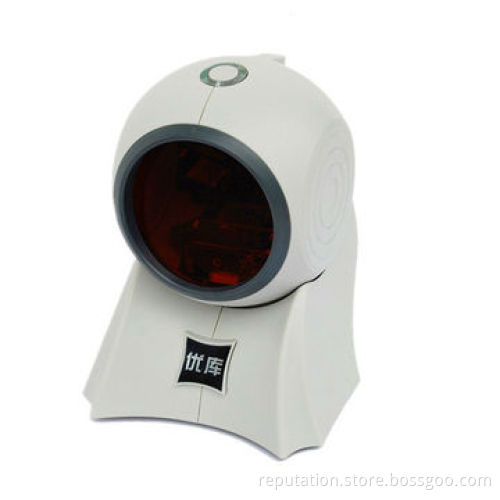

20 multi-line laser barcode scanner platform
Performance parameters
Part number: 8120
Light source: visual lasing diode the wave length is 650mm
Decoding capacities: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5 and so on
Scan lines: 20
Scan speed: 1180±5% times/s
Scanning angle: 5 directions (4lines/direction), nets
Identifiable contrast ratio: the lowest reflectivity difference is 33％

Environmental parameters:

Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 1.2m for many times
Dustproof seal design effectively prevents dust from getting into the scanner
Work temperature range: 0-45℃
Work humidity range: 5-95%

Physical parameters:

Mainframe net weight: 470g
Including accessory & package: 780g
Mainframe size (L*W*H): 116*117*147mm
Package size (L*W*H): 240*140*140mm

Electric parameters:

Input voltage: 5V DC±12%
Power: 1.6W
Laser grade
Electromagnetic compatibility: FCC part 15 class B, CE EN55022B, VCCI and BSMI
Interface types: USB2.0, RS-232 and KB
Indicators: light red LED prompt power on, blue LED prompt reading successfully

20 multi-line laser barcode scanner platform

Performance parameters

Part number: 8120

Light source: visual lasing diode the wave length is 650mm

Decoding capacities: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5 and so on

Scan lines: 20

Scan speed: 1180±5% times/s

Scanning angle: 5 directions (4lines/direction), nets

Identifiable contrast ratio: the lowest reflectivity difference is 33％

Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 1.2m for many times

Dustproof seal design effectively prevents dust from getting into the scanner

Work temperature range: 0-45℃

Work humidity range: 5-95%

Mainframe net weight: 470g

Including accessory & package: 780g

Mainframe size (L*W*H): 116*117*147mm

Package size (L*W*H): 240*140*140mm

Input voltage: 5V DC±12%

Power: 1.6W

Laser grade

Electromagnetic compatibility: FCC part 15 class B, CE EN55022B, VCCI and BSMI

Interface types: USB2.0, RS-232 and KB
