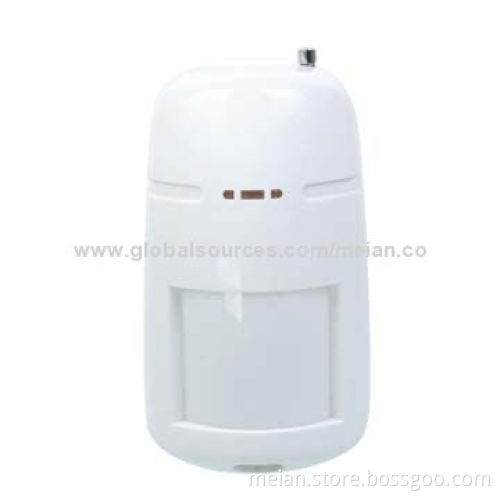

Motion Detector with 433/868MHz Emitting Frequency, Wireless
  • Motion Detector with 433/868MHz Emitting Frequency, Wireless
Motion Detector with 433/868MHz Emitting Frequency, Wireless

Motion Detector with 433/868MHz Emitting Frequency, Wireless

Get Latest Price
Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T
Product Description
Product Description
  • Features:
    • Adopts self-designed mask chip with DMT technology
    • Adopts MW and PIR technology, dual-processor improves the ability of signal processing
    • Digital pulse count is adjustable, auto-temperature compensation and energy analysis
    • Advanced pet-immunity recognition technology can tell the difference between the an intruder and a pet
    • Stable performance with tamper supervised, low-voltage check, and status report function
    • Anti-interference of air current or insect with completely protected and sealed optical lens design
    • Fashionable, elegant, and streamlined design, suitable for various environment
    • Low-power consumption, built-in big storage batteries, special low-power mode and ultra-long working hours
  • Specifications:
    • Detection: dual-PIR and MW
    • Detection distance: 12m at 25°C
    • Detection angle: 110°
    • Pet-immunity: 25kg
    • MW frequency: 10.525GHz
    • Wireless power supply voltage: 4.5V
    • Current: 9μA (standby), 20mA (alarm)
    • Installation height: 1.8, 2.4m (surface mount)
    • Working temperatures: -10 to 50°C
    • Anti-white light: >9,000 Lux
    • Anti-EMI: >30V/m (30MHz, 1GHz)
    • Emitting frequency: 433/868MHz
    • Emitting power: ≤10dB
    • Built-in batteries: 3V x 2 (CR123)
    • Dimensions: 110 x 95 x 49mm
  • Adopts self-designed mask chip with DMT technology
  • Adopts MW and PIR technology, dual-processor improves the ability of signal processing
  • Digital pulse count is adjustable, auto-temperature compensation and energy analysis
  • Advanced pet-immunity recognition technology can tell the difference between the an intruder and a pet
  • Stable performance with tamper supervised, low-voltage check, and status report function
  • Anti-interference of air current or insect with completely protected and sealed optical lens design
  • Fashionable, elegant, and streamlined design, suitable for various environment
  • Low-power consumption, built-in big storage batteries, special low-power mode and ultra-long working hours
  • Detection: dual-PIR and MW
  • Detection distance: 12m at 25°C
  • Detection angle: 110°
  • Pet-immunity: 25kg
  • MW frequency: 10.525GHz
  • Wireless power supply voltage: 4.5V
  • Current: 9μA (standby), 20mA (alarm)
  • Installation height: 1.8, 2.4m (surface mount)
  • Working temperatures: -10 to 50°C
  • Anti-white light: >9,000 Lux
  • Anti-EMI: >30V/m (30MHz, 1GHz)
  • Emitting frequency: 433/868MHz
  • Emitting power: ≤10dB
  • Built-in batteries: 3V x 2 (CR123)
  • Dimensions: 110 x 95 x 49mm
