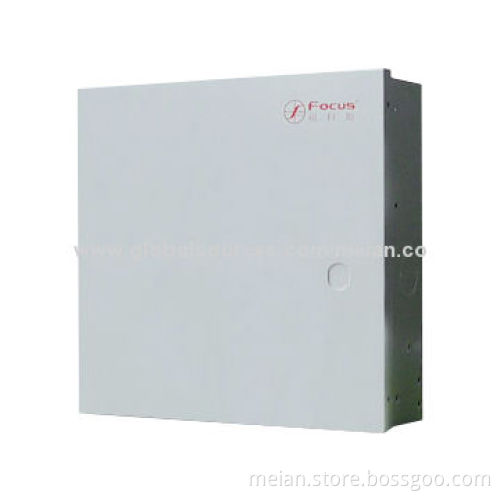

Fire Alarm System, GSM/PSTN/SMS, Support Central Monitory, Sized 365 x 310 x 85mm

Get Latest Price

Payment Type:: L/C or T/T at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T at Sight

Product Description

Features:

Eight zones which can be expanded to 240 zones, total of 248 zones
Length of bus: to 2.0km (diameter of 1.5mm)
Supports 15 keypads, all the zones could be distributed to eight partitions, which can be armed/disarmed independently
200 groups users password and 30 programmable zones
Many kinds of multiple zones expansion modules: eight module FC-7408, single module FC-7401, dual-module FC-7402 and six zones expansion module and detector with address code
Auxiliary output bus interface supports FC-7412/FC-32B relay output module and another accessory
Connected with computer through FC-7412 or connected with LAN through interface
Connected with CMS through PSTN, supports four/two and contact ID
Programming through keypad or remote programming
Supports wireless expansion function: 2 wireless receivers, 112 wireless detectors or buttons and five wireless keypads

Specifications:

Input voltage: 18V AC at 50W, 50 to 60Hz
Auxiliary output voltage: 12V DC, 1.0A (maximum)
Backup power supply: 12V/7.0mAh
Current consumption standby: 175mAh
Alarm status: 250mAh
Alarm output port: 12V DC, 1.75A
Programmable output ports: one and two
Length of keypad bus: ≤1,800m
Dimensions: 365 x 310 x 85mm

Eight zones which can be expanded to 240 zones, total of 248 zones

Length of bus: to 2.0km (diameter of 1.5mm)

Supports 15 keypads, all the zones could be distributed to eight partitions, which can be armed/disarmed independently

200 groups users password and 30 programmable zones

Many kinds of multiple zones expansion modules: eight module FC-7408, single module FC-7401, dual-module FC-7402 and six zones expansion module and detector with address code

Auxiliary output bus interface supports FC-7412/FC-32B relay output module and another accessory

Connected with computer through FC-7412 or connected with LAN through interface

Connected with CMS through PSTN, supports four/two and contact ID

Programming through keypad or remote programming

Supports wireless expansion function: 2 wireless receivers, 112 wireless detectors or buttons and five wireless keypads

Input voltage: 18V AC at 50W, 50 to 60Hz

Auxiliary output voltage: 12V DC, 1.0A (maximum)

Backup power supply: 12V/7.0mAh

Current consumption standby: 175mAh

Alarm status: 250mAh

Alarm output port: 12V DC, 1.75A

Programmable output ports: one and two
