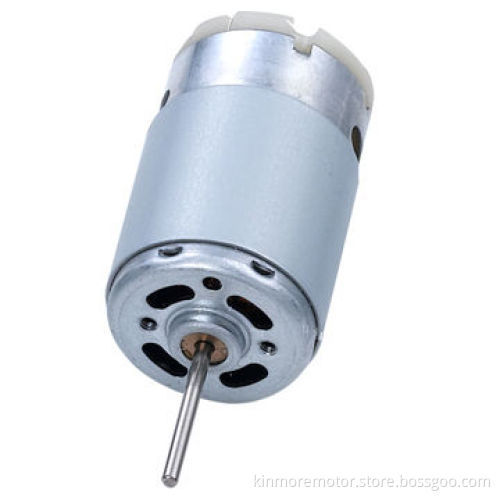

12V DC motor for vacuum cleaner, hair dryer & drill
  • 12V DC motor for vacuum cleaner, hair dryer & drill
12V DC motor for vacuum cleaner, hair dryer & drill

12V DC motor for vacuum cleaner, hair dryer & drill

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Specification model no.: RS-390SH-4537-66
  • Measuring conditions
  • Rated voltage: 12V DC
  • Motor position: to be measured with motor horizontally held
  • Environmental temperature: 25±10℃.
  • Environmental humidity: 65%±20%RH
  • Electrical characteristics(at initial stage after 30 seconds run-in):
    • At no load:
      • Speed: 27017 ±10%rpm
      • Current: 1.15A max.
    • At max. efficiency:
      • Torque: 99.5 g.cm
      • Speed: 22482 ±10% rpm
      • Current: 3.83A(max.   6.9A)
    • At stall:
      • Torque: 603g.cm
      • Current: 19.4A (max. 7.1A)
    • Direction of rotation: CW  (Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Mechanical characteristics:
    • Dimension drawing: see<outline>
    • End play: 0.05-0.5mm
    • Operating temperature range: 0-45 ℃
  • At no load:
    • Speed: 27017 ±10%rpm
    • Current: 1.15A max.
  • At max. efficiency:
    • Torque: 99.5 g.cm
    • Speed: 22482 ±10% rpm
    • Current: 3.83A(max.   6.9A)
  • At stall:
    • Torque: 603g.cm
    • Current: 19.4A (max. 7.1A)
  • Direction of rotation: CW  (Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Speed: 27017 ±10%rpm
  • Current: 1.15A max.
  • Torque: 99.5 g.cm
  • Speed: 22482 ±10% rpm
  • Current: 3.83A(max.   6.9A)
  • Torque: 603g.cm
  • Current: 19.4A (max. 7.1A)
  • Dimension drawing: see<outline>
  • End play: 0.05-0.5mm
  • Operating temperature range: 0-45 ℃
