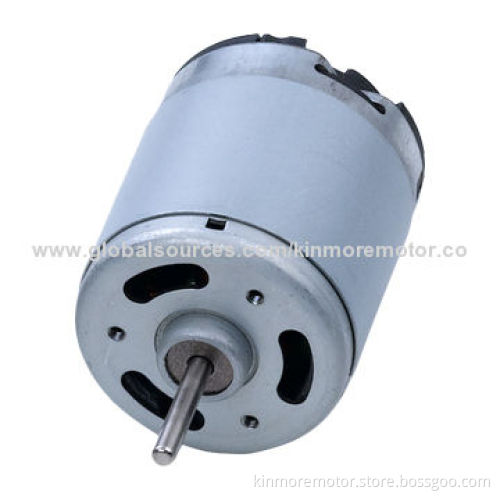

24V DC motor with plastic end cap for RC model/board
  • 24V DC motor with plastic end cap for RC model/board
24V DC motor with plastic end cap for RC model/board

24V DC motor with plastic end cap for RC model/board

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Features:
    • Plastic end cap
    • Class F-magnet wire
    • Leaf brush system
    • Carbon steel shaft
    • 3 slots armature
    • 3 bars commutator
  • Dimensions:
    • Diameter of housing: Ø35.8mm
    • Length of housing: 67mm
    • Diameter of the output shaft: Ø3.175mm
    • Note: the length output shaft could be custom made according to your demand
  • Performance:
    • Voltages:
      • Operating voltages: 6.0-24.0V
      • Nominal voltage: 24.0V
    • No load:
      • Speed: 6135rpm
      • Current: 0.19A
    • At max. efficiency:
      • Speed: 5406rpm
      • Current: 1.05A
      • Torque: 38.3mNm/391g.cm
      • Output: 21.75W
    • Stall torque: 323.5mNm/3300g.cm
    • Stall current: 10.13A
    • Direction of rotation: CW/CCW
    • Noted: all of the technical data could be custom made according to your demand
  • Typical applications:
    • Cordless power tool
    • Lean products
    • RC model/boad
  • Inspection to guarantee reliable quality:
    • Tooling inspection
    • Material lot acceptance inspection
    • Material life test
    • First article inspection
    • Operator self-inspection
    • Random inspection
    • 100% inspection to key process and motor electric performance
    • Final inspection
  • Plastic end cap
  • Class F-magnet wire
  • Leaf brush system
  • Carbon steel shaft
  • 3 slots armature
  • 3 bars commutator
  • Diameter of housing: Ø35.8mm
  • Length of housing: 67mm
  • Diameter of the output shaft: Ø3.175mm
  • Note: the length output shaft could be custom made according to your demand
  • Voltages:
    • Operating voltages: 6.0-24.0V
    • Nominal voltage: 24.0V
  • No load:
    • Speed: 6135rpm
    • Current: 0.19A
  • At max. efficiency:
    • Speed: 5406rpm
    • Current: 1.05A
    • Torque: 38.3mNm/391g.cm
    • Output: 21.75W
  • Stall torque: 323.5mNm/3300g.cm
  • Stall current: 10.13A
  • Direction of rotation: CW/CCW
  • Noted: all of the technical data could be custom made according to your demand
  • Operating voltages: 6.0-24.0V
  • Nominal voltage: 24.0V
  • Speed: 6135rpm
  • Current: 0.19A
  • Speed: 5406rpm
  • Current: 1.05A
  • Torque: 38.3mNm/391g.cm
  • Output: 21.75W
  • Cordless power tool
  • Lean products
  • RC model/boad
  • Tooling inspection
  • Material lot acceptance inspection
  • Material life test
  • First article inspection
  • Operator self-inspection
  • Random inspection
  • 100% inspection to key process and motor electric performance
  • Final inspection
