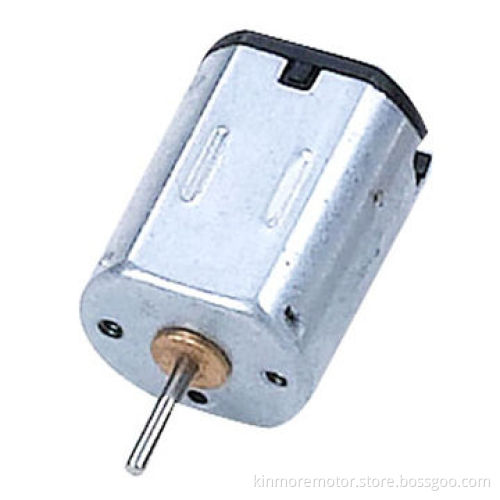

9V micro motor, hot selling for handheld vacuum cleaners

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Motor housing (D x F x L): 12 x 10 x 15.5mm (material: second)
Shaft (diameter): 1.0mm carbon steel (nickel coating)
Way of commutation: metal brush
Structure: 2-pole stator and 3-slot armature
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Options: EMI/EMC suppression, vibration

Technical performance data:

Rated voltage: 9V DC
Motor position: to be measured with motor horizontallyheld
Environmental temperatures: 5 to 35
Environmental humidity range: 40 to 85% RH

Electrical characteristics (at initial stage after 30 secondsrun-in):

At no loading:
- Speed: 3,4502rpm ±10%
- Current: 89mA
At load:
- Torque: 2.0g.cm
- Speed: 32,000rpm ±10%
- Current: 184mA
At stall:
- Torque: 28 g.cm
- Current: 1600mA
Direction of rotation: CW (clockwise when viewing from theoutput shaft end with positive voltage applied to positiveterminal)

Mechanical characteristics:

End play: 0.05 to 0.35mm
Operating temperatures: -10 to +60deg.C

Our thoughtful and professional services:

General services:
- Professional team: with 40+ experienced engineer and 10+ international trade sales
- In time reply: all the inquiries can be replied with 24 hours, 90% orders can be delivered on schedule and complaints can be handled with 7 days
- Flexible service: we warmly welcome the customer's participation from the product design to bulk production, and we provide turnkey solution and OEM service
- Individualized service: for clients with decent order, we can also source accessories like gears, worms, cables and connectors and more and arrange the assembly
Customization services:
- OEM and customization are available
- ROHS Directive-compliant
- Ball bearing in output Side
- EMI suppression
- Low-cogging design
- High degree of protection
- Small mechanical time constant
- Resist intense vibrations

Motor housing (D x F x L): 12 x 10 x 15.5mm (material: second)

Shaft (diameter): 1.0mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2-pole stator and 3-slot armature

Magnet type: Nd-Fe-B

Rotation: CW/CCW and reversible

Options: EMI/EMC suppression, vibration

Rated voltage: 9V DC

Motor position: to be measured with motor horizontallyheld

Environmental temperatures: 5 to 35

Environmental humidity range: 40 to 85% RH

At no loading:

Speed: 3,4502rpm ±10%
Current: 89mA

At load:

Torque: 2.0g.cm
Speed: 32,000rpm ±10%
Current: 184mA

At stall:

Torque: 28 g.cm
Current: 1600mA

Direction of rotation: CW (clockwise when viewing from theoutput shaft end with positive voltage applied to positiveterminal)

Speed: 3,4502rpm ±10%

Current: 89mA

Torque: 2.0g.cm

Speed: 32,000rpm ±10%

Current: 184mA

Torque: 28 g.cm

Current: 1600mA

End play: 0.05 to 0.35mm

Operating temperatures: -10 to +60deg.C

General services:

Professional team: with 40+ experienced engineer and 10+ international trade sales
In time reply: all the inquiries can be replied with 24 hours, 90% orders can be delivered on schedule and complaints can be handled with 7 days
Flexible service: we warmly welcome the customer's participation from the product design to bulk production, and we provide turnkey solution and OEM service
Individualized service: for clients with decent order, we can also source accessories like gears, worms, cables and connectors and more and arrange the assembly

Customization services:

OEM and customization are available
ROHS Directive-compliant
Ball bearing in output Side
EMI suppression
Low-cogging design
High degree of protection
Small mechanical time constant
Resist intense vibrations

Professional team: with 40+ experienced engineer and 10+ international trade sales

In time reply: all the inquiries can be replied with 24 hours, 90% orders can be delivered on schedule and complaints can be handled with 7 days

Flexible service: we warmly welcome the customer's participation from the product design to bulk production, and we provide turnkey solution and OEM service

Individualized service: for clients with decent order, we can also source accessories like gears, worms, cables and connectors and more and arrange the assembly

OEM and customization are available

ROHS Directive-compliant

Ball bearing in output Side

EMI suppression

Low-cogging design

High degree of protection

Small mechanical time constant

Resist intense vibrations
