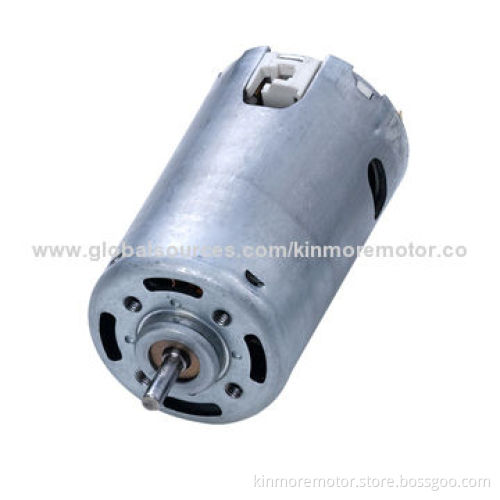

230V DC Motor, 10131RPM for Coffee Grinders

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Mechanical characteristics:

Motor diameter: 51.8mm
Shaft diameter: 6.35mm
Motor length: 150mm
Housing length: 85mm
Shaft length: 55.65mm
End play range: 0.05-0.35mm

Electric characteristics:

Nominal voltage: 230V DC
No load speed: 10,131rpm
No load current: 130mA
On load speed: 7,887rpm
On load torque: 118.29Nm
On load current: 670mA

Features:

2-pole stator
12-Slot armature/24-bar commutator
DMD slot-ground insulation
Inside cooling fan
Zinc coated steel housing
Zinc coated steel end cap
Cage brush system
Driving side: Ball bearing
Terminal side: Self-aligning sintered
Bronze bush
Carbon steel (nickel coated) shaft
Class F magnet wire
EMI filter: 2 chokes and 2 caps

Typical applications:

Coffee grinder
Power tool
Stick blender
Juicer
Mixer

Motor diameter: 51.8mm

Shaft diameter: 6.35mm

Motor length: 150mm

Housing length: 85mm

Shaft length: 55.65mm

End play range: 0.05-0.35mm

Nominal voltage: 230V DC

No load speed: 10,131rpm

No load current: 130mA

On load speed: 7,887rpm

On load torque: 118.29Nm

On load current: 670mA

2-pole stator

12-Slot armature/24-bar commutator

DMD slot-ground insulation

Inside cooling fan

Zinc coated steel housing

Zinc coated steel end cap

Cage brush system

Driving side: Ball bearing

Terminal side: Self-aligning sintered

Bronze bush

Carbon steel (nickel coated) shaft

Class F magnet wire

EMI filter: 2 chokes and 2 caps

Coffee grinder

Power tool

Stick blender

Juicer

Mixer
