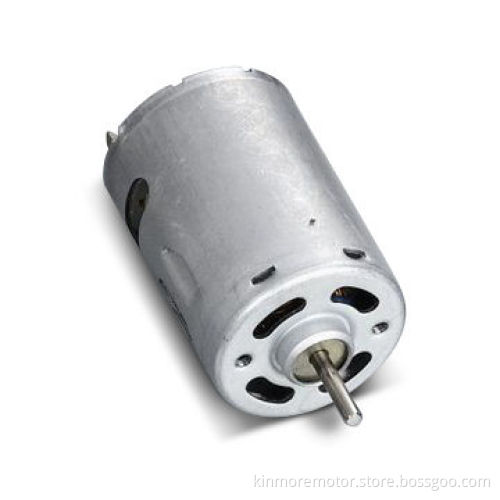

DC motor with cooling fan for vacuum cleaner/headrest adjuster/bilge pump/toy

DC motor with cooling fan for vacuum cleaner/headrest adjuster/bilge pump/toy

Get Latest Price

Payment Type:: T/T or LC at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or LC at Sight

Product Description

Used for 6V DC motor for kitchen blenders, juicers, vacuum cleaners, screwdrivers, cordless tools and air compressors

Dimensions (diameter x length): 35.8 x 50.0mm

With nickel-coated carbon shaft

With 2 pole start, 3 slot armature

With SECD housing and SECC end cap

Way of commutation: leaf brush system

Direction of rotation: CCW/CW

Insulation class: F

Ball bearing and EMC/EMI suppression for options

With RoHS, CE and UL marks

Technical performance data:

Rated voltage: 7.2V
No load:
- Speed: 24,000rpm
- Current: 2.65A
At maximum efficiency:
- Speed: 21,518rpm
- Current: 15.61A
- Torque: 28.5mNm
- Power: 61.15W
At stall:
- Torque: 196mNm
- Current: 92A

Above all can be custom made after evaluation without extracharge if no extra elements needed

About us:

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5g.cm - 30kg.cm
Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on

Rated voltage: 7.2V

No load:

Speed: 24,000rpm
Current: 2.65A

At maximum efficiency:

Speed: 21,518rpm
Current: 15.61A
Torque: 28.5mNm
Power: 61.15W

At stall:

Torque: 196mNm
Current: 92A

Speed: 24,000rpm

Current: 2.65A

Speed: 21,518rpm

Current: 15.61A

Torque: 28.5mNm

Power: 61.15W

Torque: 196mNm

Current: 92A

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors

Product size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000RPM

Stall torque: 5g.cm - 30kg.cm

Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on
