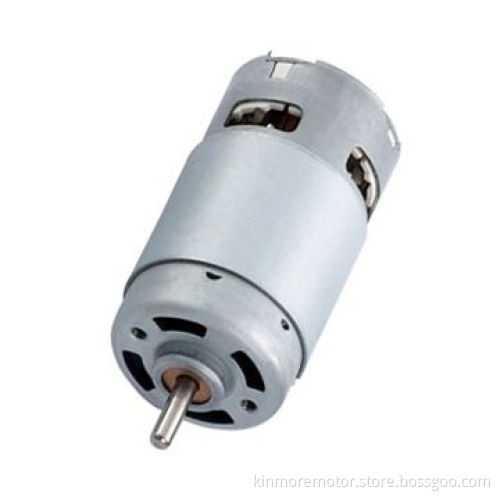

24 volt car door opener and EPB big DC motor supplier

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Performances:

Measuring conditions:
- Rated voltage: 24V DC
- Motor position: To be measured with motor horizontally held
- Environmental temperatures: 25 ±10
- Environmental humidity: 65% ±20%RH
Electrical characteristics (At initial stage after 30 seconds run-in):
- At no load:
  - Speed: 8,800 ±10%rpm
  - Current: 0.38A (max 0.57A)
- At max. efficiency:
  - Torque: 63.8mNm/651g.cm
  - Speed: 7,774 ±10%rpm
  - Current: 2.88A (max 5.2A)
  - Output: 51.93W
- At stall:
  - Torque: 547mNm/5579g.cm
  - Current: 21.81A (max 39.3A)

Mechanical characteristics:

End play 0.5mm 0.55mm,
EMC filter: 2 chokes and 2 caps
Operating temperatures: -10 ~ 60
Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
Structures: 2-pole stator and 5-slot armature
Insulation: class F magnet wire

Motor housing (D x L): 43.8mm x 75mm

Material: SECD

Shaft: Ø5.0mm carbon steel (nickel-coated)

Way of commutation: carbon leaf brush system

With inside cooling fan

EMC/EMI suppression: optional

Ball bearing on the driving sides is available

Measuring conditions:

Electrical characteristics (At initial stage after 30 seconds run-in):

At no load:
- Speed: 8,800 ±10%rpm
- Current: 0.38A (max 0.57A)
At max. efficiency:
- Torque: 63.8mNm/651g.cm
- Speed: 7,774 ±10%rpm
- Current: 2.88A (max 5.2A)
- Output: 51.93W
At stall:
- Torque: 547mNm/5579g.cm
- Current: 21.81A (max 39.3A)
