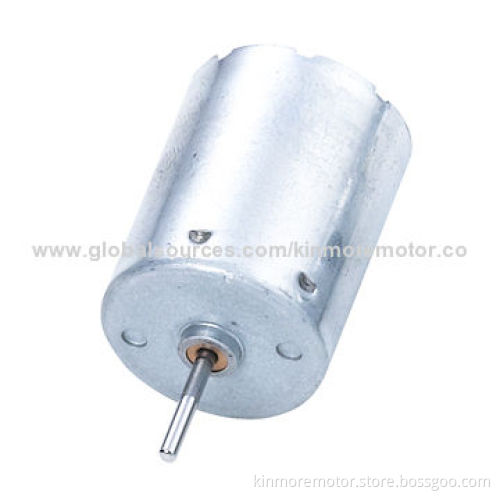

12 V DC motor for RC model printer blood pressure meter styling brush
  • 12 V DC motor for RC model printer blood pressure meter styling brush
12 V DC motor for RC model printer blood pressure meter styling brush

12 V DC motor for RC model printer blood pressure meter styling brush

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Specifications:
    • Motor housing (D x L): 24.4 x 30.8mm (material: SECD)
    • Shaft (diameter): 2.0mm carbon steel (nickel coating)
    • Way of commutation: carbon brush
    • Structure: 2 poles stator and 3 slots armature
    • Rotation: CW/CCW and reversible
    • Options: EMI/EMC suppression
  • Technical performance data:
    • Measuring conditions:
      • Rated voltage: 12V DC
      • Motor position: to be measured with motor horizontally held
      • Environmental temperatures: 25 ±10℃
      • Environmental humidity range: 65%±20% RH
  • Electrical characteristics (At initial stage after 30 seconds run-in):
    • At no load
    • Speed: 7,000 ± 10%rpm
    • Current: 0.07A (maximum 0.14A)
  • At maximum efficiency:
    • Torque: 50.2gcm
    • Speed: 5,966 ±10% rpm
    • Current: 0.4A (maximum 0.61A)
  • At stall:
    • Torque: 340g.cm
    • Current: 2.33A (maximum 3.5A)
    • Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Mechanical characteristics:
    • Dimension drawing: see outline
    • End play range: 0.05-0.55mm
    • Operating temperatures: -10 to 60℃
    • Customized specifications are welcome
  • About us:
    • Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and motors
    • Product size range: 6 - 52mm, diameter
    • DC voltage range: 1.5 - 42V
    • AC rectify range: 100, 110, 220, 230, 240V and more
    • Speed range: 1 - 30,000RPM
    • Stall torque: 5g.cm - 30kg.cm
    • Applications: home appliance, power tools, toys & model, precision instrument, office equipment,
    • personal care product, automotive, audio & visual equipment and so on
  • Motor housing (D x L): 24.4 x 30.8mm (material: SECD)
  • Shaft (diameter): 2.0mm carbon steel (nickel coating)
  • Way of commutation: carbon brush
  • Structure: 2 poles stator and 3 slots armature
  • Rotation: CW/CCW and reversible
  • Options: EMI/EMC suppression
  • Measuring conditions:
    • Rated voltage: 12V DC
    • Motor position: to be measured with motor horizontally held
    • Environmental temperatures: 25 ±10℃
    • Environmental humidity range: 65%±20% RH
  • Rated voltage: 12V DC
  • Motor position: to be measured with motor horizontally held
  • Environmental temperatures: 25 ±10℃
  • Environmental humidity range: 65%±20% RH
  • At no load
  • Speed: 7,000 ± 10%rpm
  • Current: 0.07A (maximum 0.14A)
  • Torque: 50.2gcm
  • Speed: 5,966 ±10% rpm
  • Current: 0.4A (maximum 0.61A)
  • Torque: 340g.cm
  • Current: 2.33A (maximum 3.5A)
  • Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Dimension drawing: see outline
  • End play range: 0.05-0.55mm
  • Operating temperatures: -10 to 60℃
  • Customized specifications are welcome
  • Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and motors
  • Product size range: 6 - 52mm, diameter
  • DC voltage range: 1.5 - 42V
  • AC rectify range: 100, 110, 220, 230, 240V and more
  • Speed range: 1 - 30,000RPM
  • Stall torque: 5g.cm - 30kg.cm
  • Applications: home appliance, power tools, toys & model, precision instrument, office equipment,
  • personal care product, automotive, audio & visual equipment and so on
