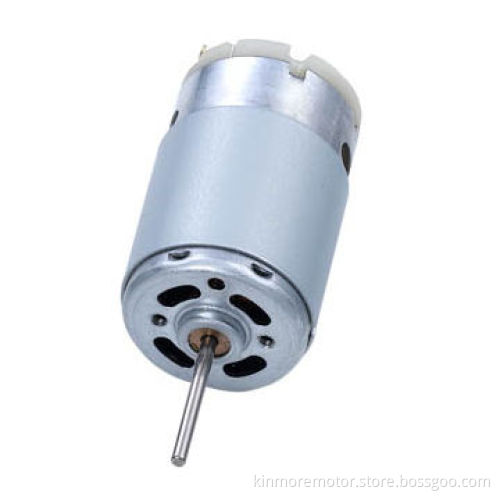

12V DC Motor with High Speed and High Torque for Headrest Adjuster, Drill, Bath/Hair Dryer

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Motor housing (D x L): Ø27.7 x 46.5mm
Material: SECD
Shaft: 2.3mm carbon steel (nickel-coated)
Way of commutation: carbon leaf brush system
Structure: 2 poles stators and 3 slots armature
Insulation: class F magnet wire
Rotation: CW/CCW and reversible
EMC/EMI suppression: optional
Ball bearing on the driving sides is available
Ideal for coffee machines, window actuators and vacuum cleaners

Performance:

Rated voltage: 12V DC
At no load:
- Speed: 16,800rpm
- Current: 0.36A
At maximum efficiency:
- Speed: 1,4406rpm
- Current: 2.08A
- Torque: 118g/cm
At stall:
- Current: 12A
- Torque: 800g/cm
Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression

Packaging:

Quantity: 140 pieces
Gross weight: 14.0kg
Dimensions: 37 x 28.8 x 12cm

About us:

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5g.cm - 30kg.cm
Applications: home appliance, power tools, toys & model,precision instrument, office equipment,
personal care product,automotive, audio & visual equipment and so on.
