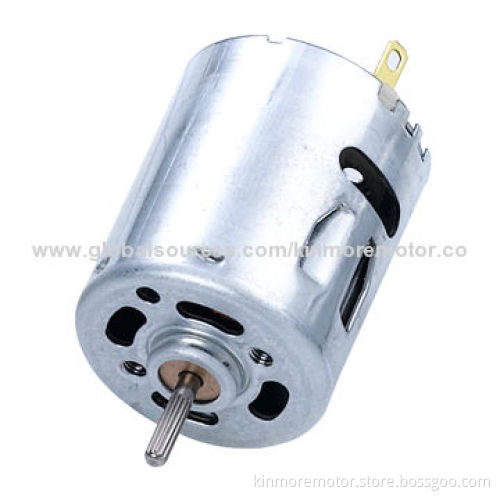

12V Large Torque DC Electric Motor for Hair Dryer, Sintered Bronze Bearing

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions:

Diameter: Ø27.7mm
Length of housing: 32.6mm
Diameter of shaft: Ø2.3mm
Weight: 57g

Technical parameters:

Voltage:
- Operating range: 6.0-12.0V
- Nominal voltage: 12V
No load:
- Speed: 7,300rpm
- Current: 0.15A
At maximum efficiency:
- Speed: 5,704rpm
- Current: 0.54A
- Torque: 6.2mNm/63.24g.cm
- Output: 3.71W
- Stall torque: 28.4mNm/290g.cm
- Stall current: 1.92A
Direction of rotation: CW/CCW
All of above data could be custom made according to your requirements

Features:

Metal end cap
Sintered bronze bearing
Leaf brush system
3 slots armature

Typical applications:

Stick massager
Air freshener
Foot bath
Hair dryers
Copy machines
Printers

Customization options:

OEM orders and customized designs are accepted
With the RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

About us:

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors
Size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000rpm
Stall torque: 5g.cm - 30kg.cm

Applications: home appliances, power tools, toys and models, precision instruments, office equipment, personal care products, automotive, audio and visual equipment and more

Diameter: Ø27.7mm

Length of housing: 32.6mm

Diameter of shaft: Ø2.3mm

Weight: 57g

Voltage:

Operating range: 6.0-12.0V
Nominal voltage: 12V

No load:

Speed: 7,300rpm
Current: 0.15A

At maximum efficiency:

Speed: 5,704rpm
Current: 0.54A
Torque: 6.2mNm/63.24g.cm
Output: 3.71W
Stall torque: 28.4mNm/290g.cm
Stall current: 1.92A

Direction of rotation: CW/CCW

All of above data could be custom made according to your requirements

Operating range: 6.0-12.0V

Nominal voltage: 12V

Speed: 7,300rpm

Current: 0.15A

Speed: 5,704rpm

Current: 0.54A

Torque: 6.2mNm/63.24g.cm

Output: 3.71W

Stall torque: 28.4mNm/290g.cm

Stall current: 1.92A

Metal end cap

Sintered bronze bearing

Leaf brush system

3 slots armature

Stick massager

Air freshener

Foot bath

Hair dryers

Copy machines

Printers

OEM orders and customized designs are accepted

With the RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors

Size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000rpm

Stall torque: 5g.cm - 30kg.cm
